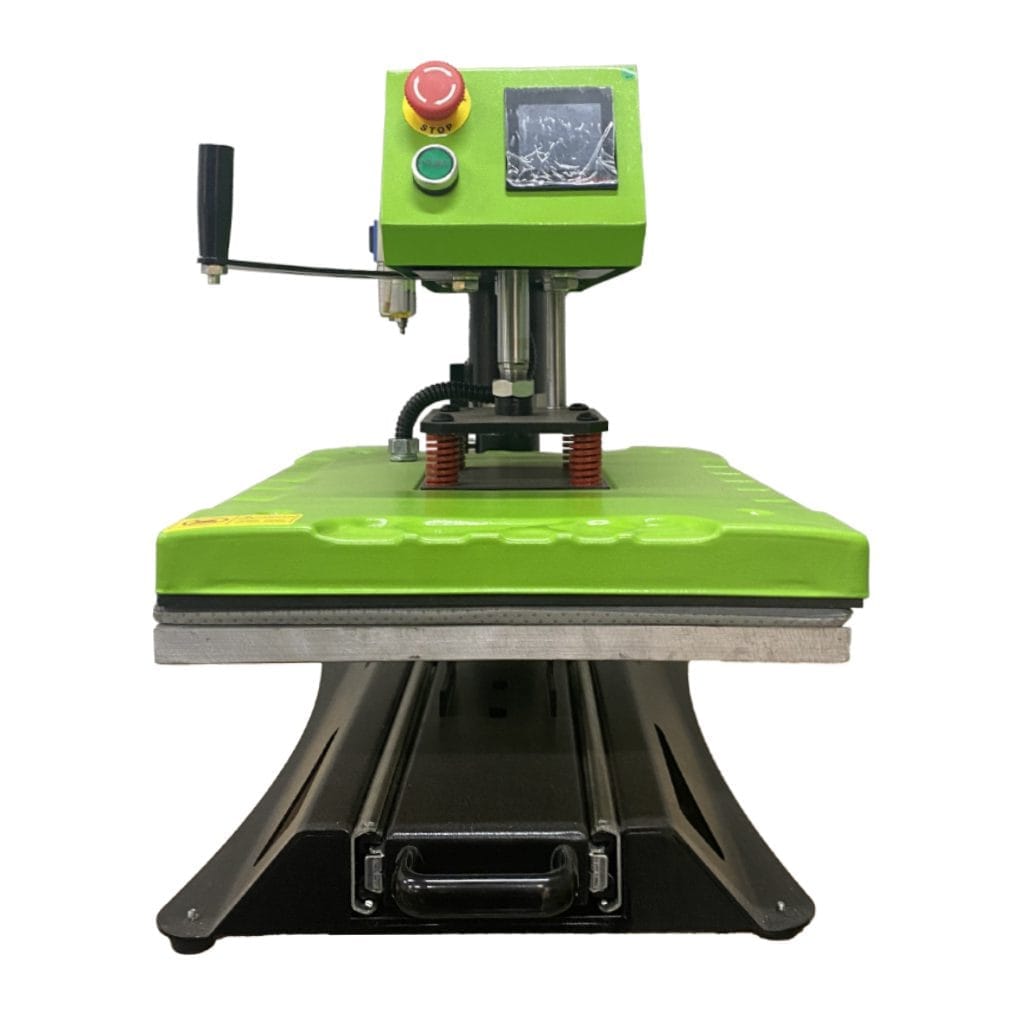

Digital Swing Away Heat Press Sliding Tray Pneumatic 16 x 20 inches 40 x 50 cm Front

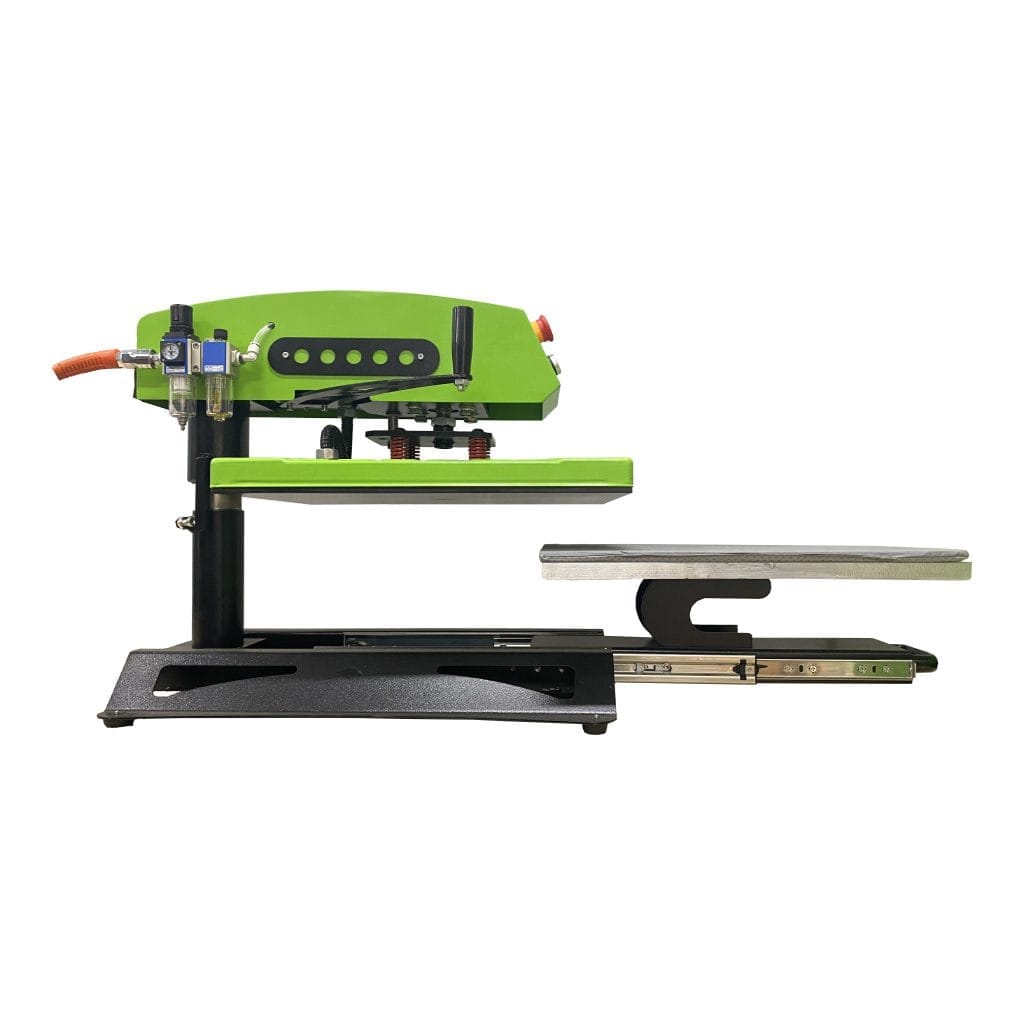

Digital Swing Away Heat Press Sliding Tray Pneumatic 16 x 20 inches 40 x 50 cm Side Open

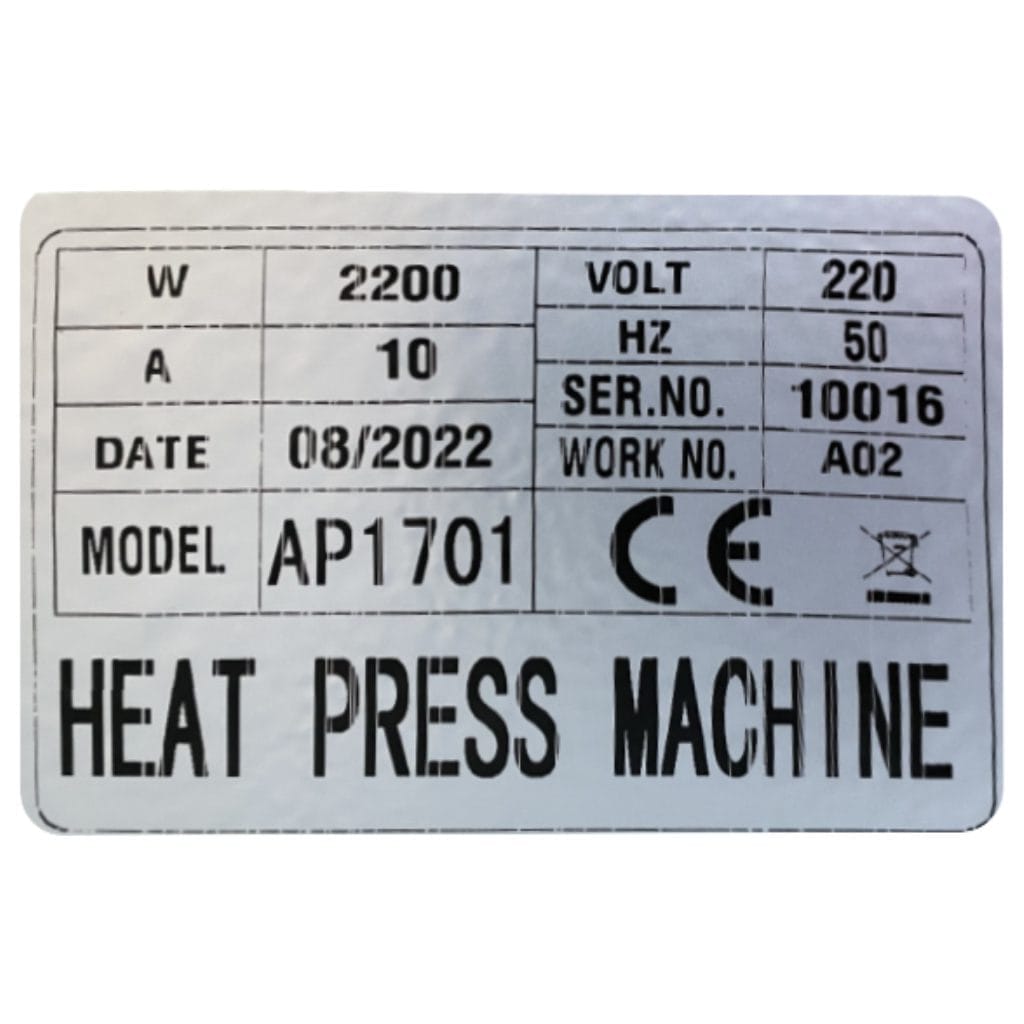

Digital Swing Away Heat Press Sliding Tray Pneumatic 16 x 20 inches 40 x 50 cm Label

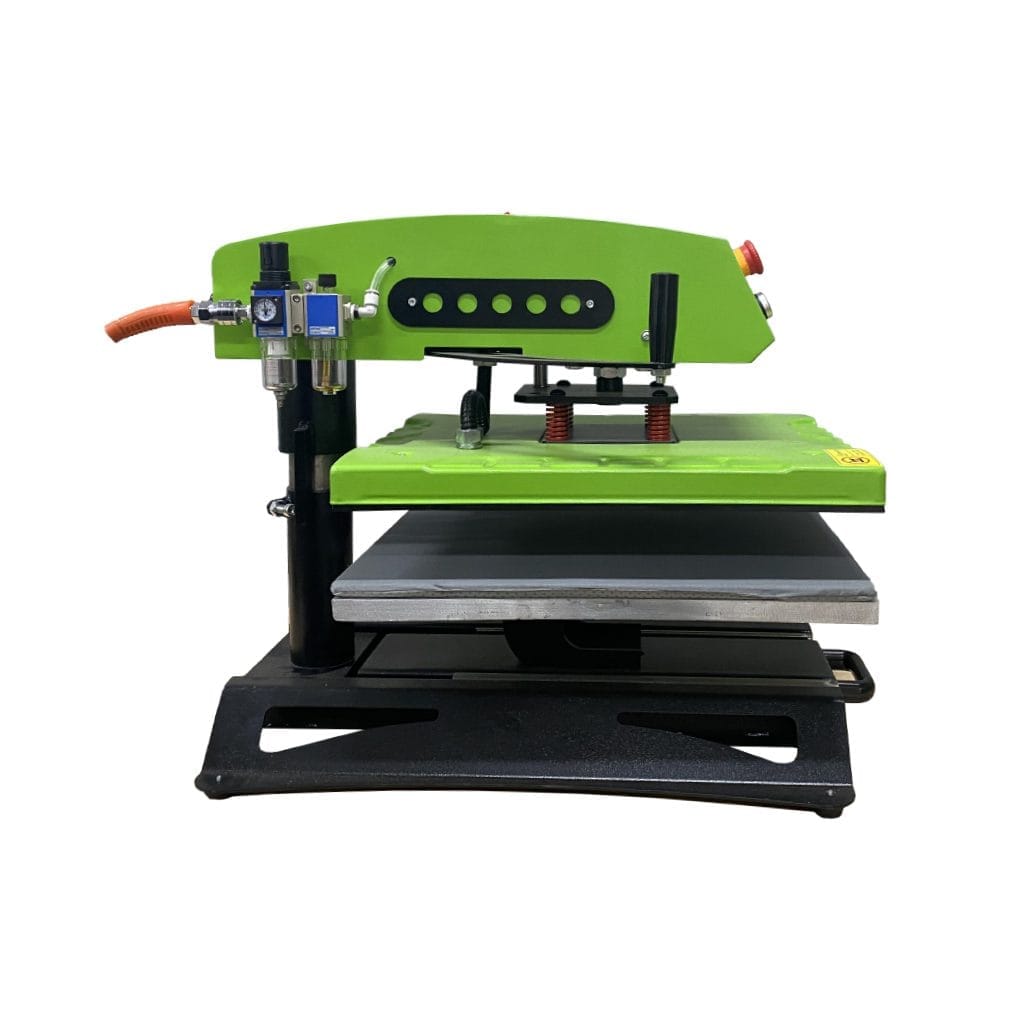

Digital Swing Away Heat Press Sliding Tray Pneumatic 16 x 20 inches 40 x 50 cm Side

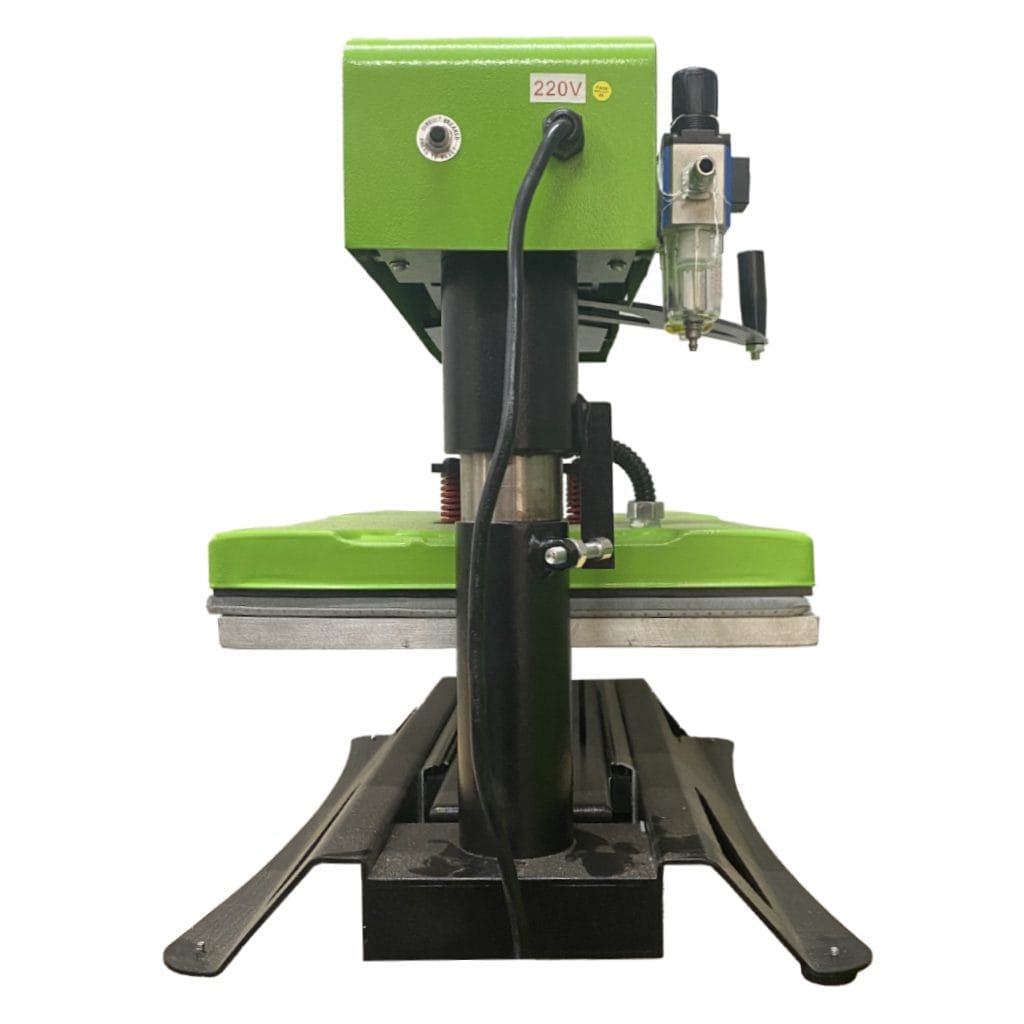

Digital Swing Away Heat Press Sliding Tray Pneumatic 16 x 20 inches 40 x 50 cm Back

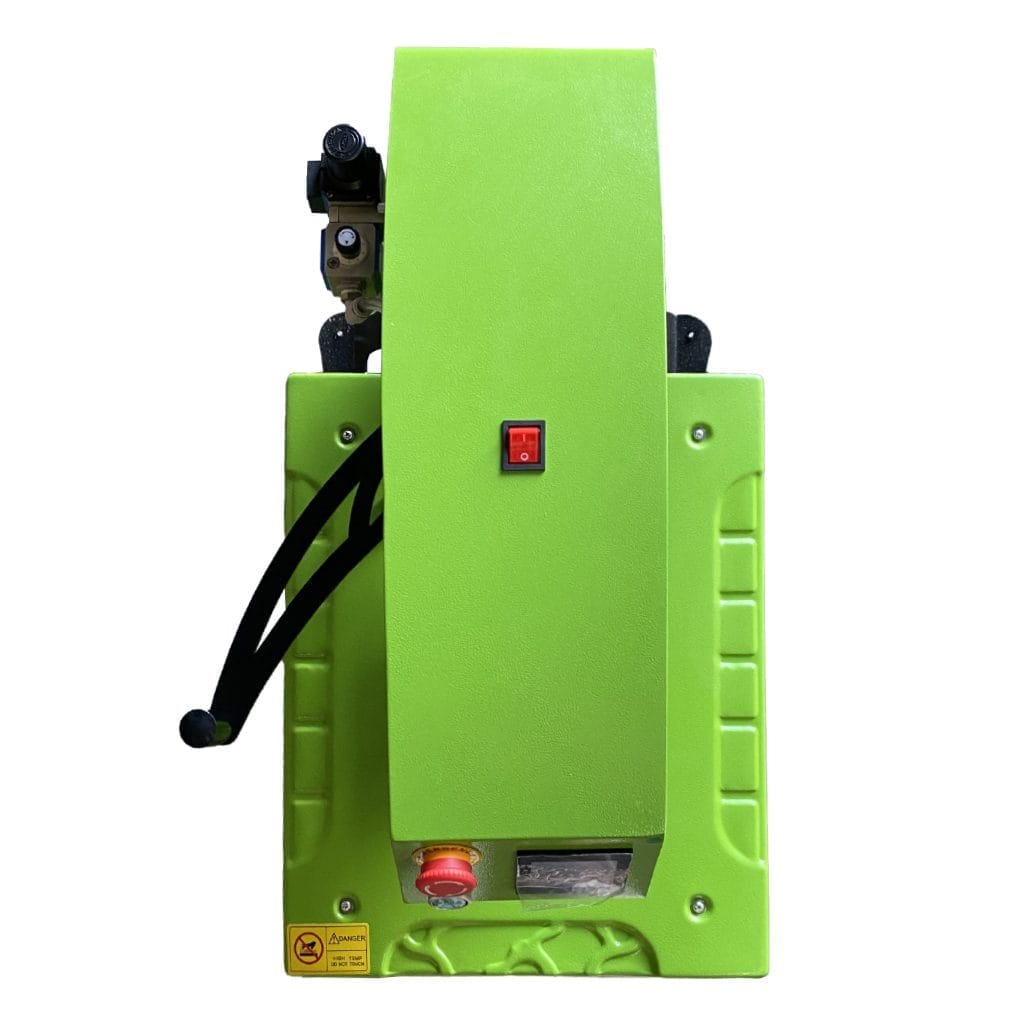

Digital Swing Away Heat Press Sliding Tray Pneumatic 16 x 20 inches 40 x 50 cm Top

Digital Swing Away Heat Press Sliding Tray Pneumatic 16 x 20 inches 40 x 50 cm Air Regulator

Pneumatic Swing Away Sliding Tray Heat Press 16 x 20 Inches 40 x 50 Cm [AP1701]

Name: Pneumatic Swing Away Sliding Tray Heat Press 16 x 20 Inches 40 x 50 Cm [AP1701]
SKU: AUMHP000101
Availability: InStock

SKU: AUMHP000101

Original price was: $1,995.00.Current price is: $1,295.00.

The 40 x 50 Pneumatic Heat Press is a Heat Press Machine for sublimation, transfer printing and compatible blank production. Key features include Industrial-grade pneumatic operation ensures precision pressure control and repeatable production performance.

2 in stock

SKU: AUMHP000101 Categories: Heat Presses, Pneumatic Heat Presses Tags: Electric Machinery, Heat Press, Machinery

Pneumatic Swing Away Sliding Tray Heat Press 16 x 20 Inches 40 x 50 Cm [AP1701] Description

📖 What to know about the 40 x 50 Pneumatic Heat Press

IMPORTANT NOTICE: Does not include air compressor.

Great heat press for a beginner to advanced user.

Well constructed with a metal frame, consistent reliable result, best value for money heat presses in Australia.

Our heat press machines are designed for printing textiles, t-shirts, mouse pads, puzzles, ceramic tiles and other flat surfaces items by using the flex, flocking, transfer printing paper, sublimation, dtf etc.

This heat press requires a compressor (not supplied) to operate.

Our heat press machines are covered by a 12 month return to base warranty, we will either repair or replace your heat press if required but we have less than a 2% failure rate. Items like heating belt elements for mug presses are not covered under warranty and are considered a consumable.

For user manuals and more detail Click Here

📋 Pneumatic Swing Away Sliding Tray Heat Press 16 x 20 Inches 40 x 50 Cm [AP1701] Features

Industrial-grade pneumatic operation ensures precision pressure control and repeatable production performance. ✓Sliding tray design allows safe, easy loading and unloading of garments away from the heat plate. ✓Swing-away upper platen provides full access to the work area for safer and more accurate placement. ✓Large 40 x 50cm platen supports full-size garment prints and high-coverage designs. ✓Digital controls allow precise adjustment of temperature and pressing time for consistent results. ✓Designed to deliver even heat and pressure across the platen for clean, consistent transfers. ✓Strong metal frame and pneumatic operation make it suitable for both entry-level and production environments. ✓Suitable for DTF, sublimation, HTV, and other transfer applications across various substrates. ✓

📏 Pneumatic Swing Away Sliding Tray Heat Press 16 x 20 Inches 40 x 50 Cm [AP1701] Dimensions

Product Dimensions

Product Length	70.00 Cm (+/- 5%)
Product Width	41.00 Cm (+/- 5%)
Product Height	56.00 Cm (+/- 5%)
Product Weight	53.00 Kg (+/- 5%)

Shipping Dimensions

Shipping Length	74.00 Cm (+/- 5%)
Shipping Width	49.00 Cm (+/- 5%)
Shipping Height	69.00 Cm (+/- 5%)
Shipping Weight	62.00 Kg (+/- 5%)

Machine Footprint

Minimum Footprint Length	70.00 Cm (+/- 5%)
Minimum Footprint Width	41.00 Cm (+/- 5%)
Minimum Footprint Height	56.00 Cm (+/- 5%)
Maximum Footprint Length	158.00 Cm (+/- 5%)
Maximum Footprint Width	78.00 Cm (+/- 5%)
Maximum Footprint Height	58.00 Cm (+/- 5%)

📋 Pneumatic Swing Away Sliding Tray Heat Press 16 x 20 Inches 40 x 50 Cm [AP1701] Includes

1 x 40 x 50 Pneumatic Heat Press ✓1 x 2m Power Cord ✓1 x 40x50cm Foam Press Pad ✓1 x 40x50cm Silicone Press Pad ✓

📋 Pneumatic Swing Away Sliding Tray Heat Press 16 x 20 Inches 40 x 50 Cm [AP1701] Specifications

🎨 Colours

Primary	Green
Secondary	Black
Additional	Silver
Additional	Red

🧱 Materials

Primary	Metal
Secondary	Alloy
Additional	Electrical Components
Additional	Foam
Additional	Rubber

📄 Certifications and Compliance

Certification 1	CE
Certification 2	EMC
Certification 3	LVD
Certification 4	ROHS
Certification 5	UL
Certification 6	TUVV

🔌 Electrical Specifications

Plug Type	10A
Volts	240
Hertz	50hz

⚙️ Machine Specifications

Platen Size	40 x 50 cm (16 x 20")
Temperature Range	0-400°C
Time Range	0-999 Seconds

👤 Age and Usage

Age Range	Adult
Adult Product	No

📋 Pneumatic Swing Away Sliding Tray Heat Press 16 x 20 Inches 40 x 50 Cm [AP1701] Design

Heavy-Duty 5mm Steel Frame Construction

Built using thick, high-grade steel for maximum structural integrity. This provides exceptional rigidity, reduces flex under pressure, and ensures long-term durability in commercial environments.

All-Alloy Heat Plate Design

Manufactured from solid alloy rather than cast iron or mixed metals, allowing for superior heat conductivity, faster heat recovery, and more consistent temperature distribution across the entire platen.

Teflon-Coated Heat Plate Surface

Premium non-stick Teflon coating prevents scorching, reduces residue build-up, and protects garments and substrates while making cleaning fast and easy.

Uniform Pressure & Heat Distribution

The rigid frame combined with the alloy heat plate delivers even pressure and consistent heat from edge to edge, critical for professional sublimation, DTF, HTV, and transfer work.

Thermal Stability & Heat Retention

The alloy platen maintains stable temperatures with minimal fluctuation, improving transfer accuracy and reducing re-pressing or product waste.

📘 Product Instructions

Prepare Your Workspace and Materials

Set up your heat press on a stable, heat-resistant surface in a well-ventilated area. Gather your materials: the substrate (e.g., t-shirt or mug), transfer paper with your printed design, heat-resistant tape, and protective sheets like Teflon or butcher paper. Ensure your design is mirrored if needed for sublimation.

Set Temperature, Time, and Pressure

Plug in your heat press and turn it on. Refer to the product's recommended settings (found in our user manuals or product descriptions on printgeek.com.au). Typical ranges:Temperature: 180–200°C (356–392°F) for most sublimation items.Time: 30–60 seconds for fabrics; 180–240 seconds for mugs.Pressure: Medium to firm, depending on the material—adjust the knob or lever accordingly.Allow the press to preheat fully (usually 5–10 minutes) until it reaches the set temperature.

Position and Press

Place the substrate on the lower platen. Align your transfer paper face down on the item and secure with tape. Cover with a protective sheet to prevent scorching. Close the press firmly and start the timer. Apply even pressure—avoid opening mid-cycle.

Cool and Finish

Once the timer beeps, carefully lift the press (use heat-resistant gloves). Peel the transfer paper while hot for best results (or cool for certain materials). Let the item cool completely before handling or packaging.

Safety Tips

Always wear protective gloves and avoid touching hot surfaces.Unplug when not in use.For detailed settings per product, check our heat press user manuals at printgeek.com.au/heat-press-user-manuals.If you're new, practice on scraps to perfect your technique.For high-quality heat presses and supplies, browse our collection at Print Geek Australia. Questions? Contact our team for expert advice!

🎬 Videos about Pneumatic Swing Away Sliding Tray Heat Press 16 x 20 Inches 40 x 50 Cm [AP1701]

▶️ No Current Video

No current videos are available for this product.

▶ Visit our YouTube Channel

Subscribe to be notified of new videos as they are released.

🛡️ Warranty & Returns

12 month return to base warranty, please see link for more information.

Warranty length: 12 months

View Return to Base Warranty

Warranty coverage is subject to product condition, correct use, manufacturer terms and the warranty conditions listed on the linked page.
