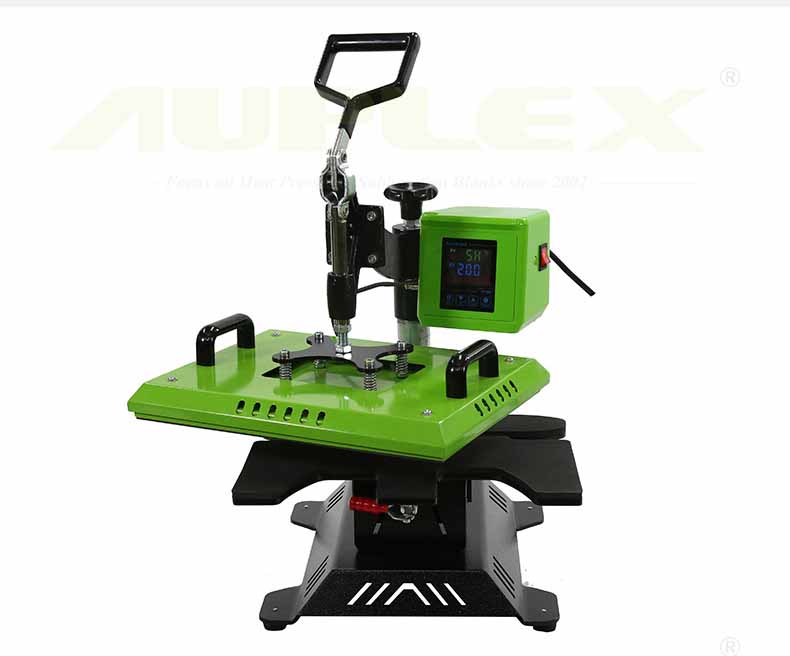

H41807 Digital Rotary Shoe Heat Press Front

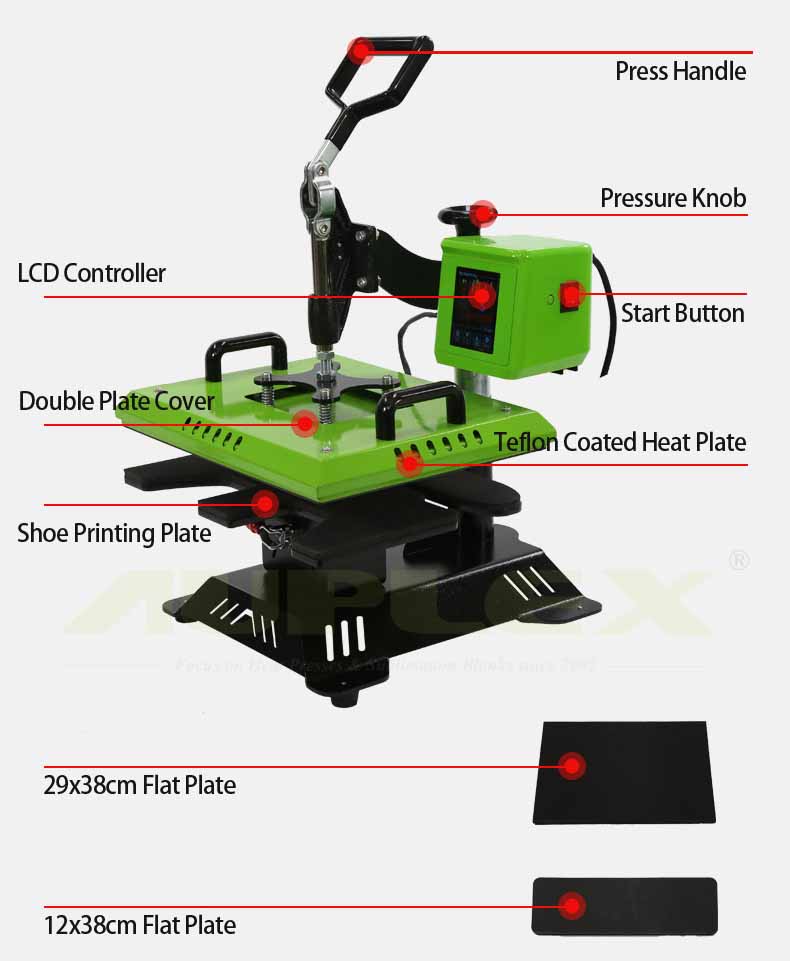

H41807 Digital Rotary Shoe Heat Press Diagram

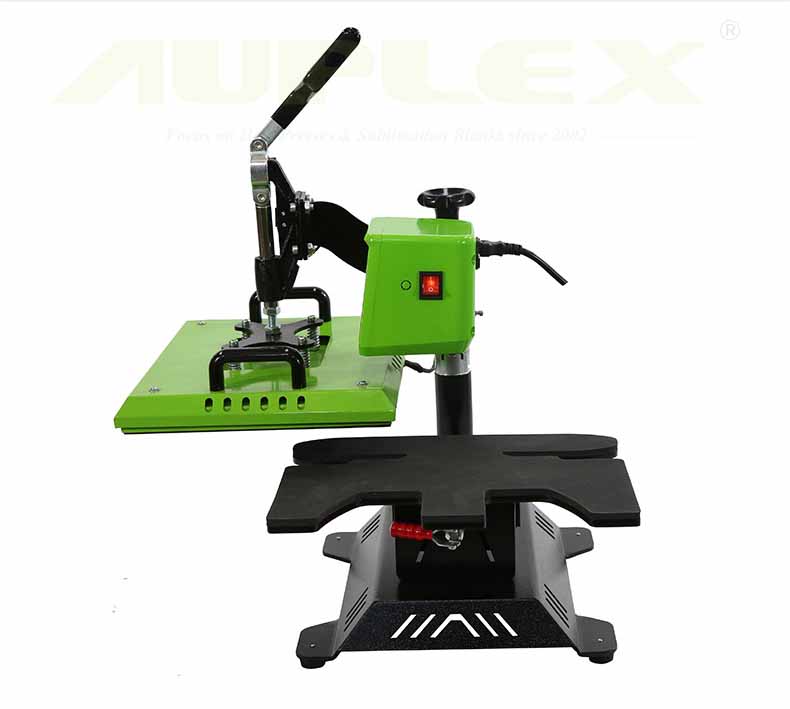

H41807 Digital Rotary Shoe Heat Press Left

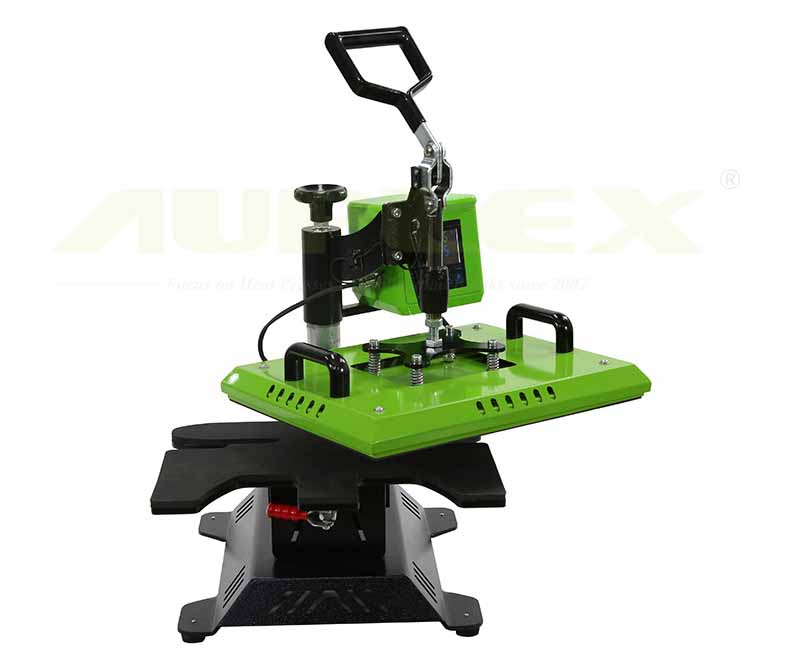

H41807 Digital Rotary Shoe Heat Press Right

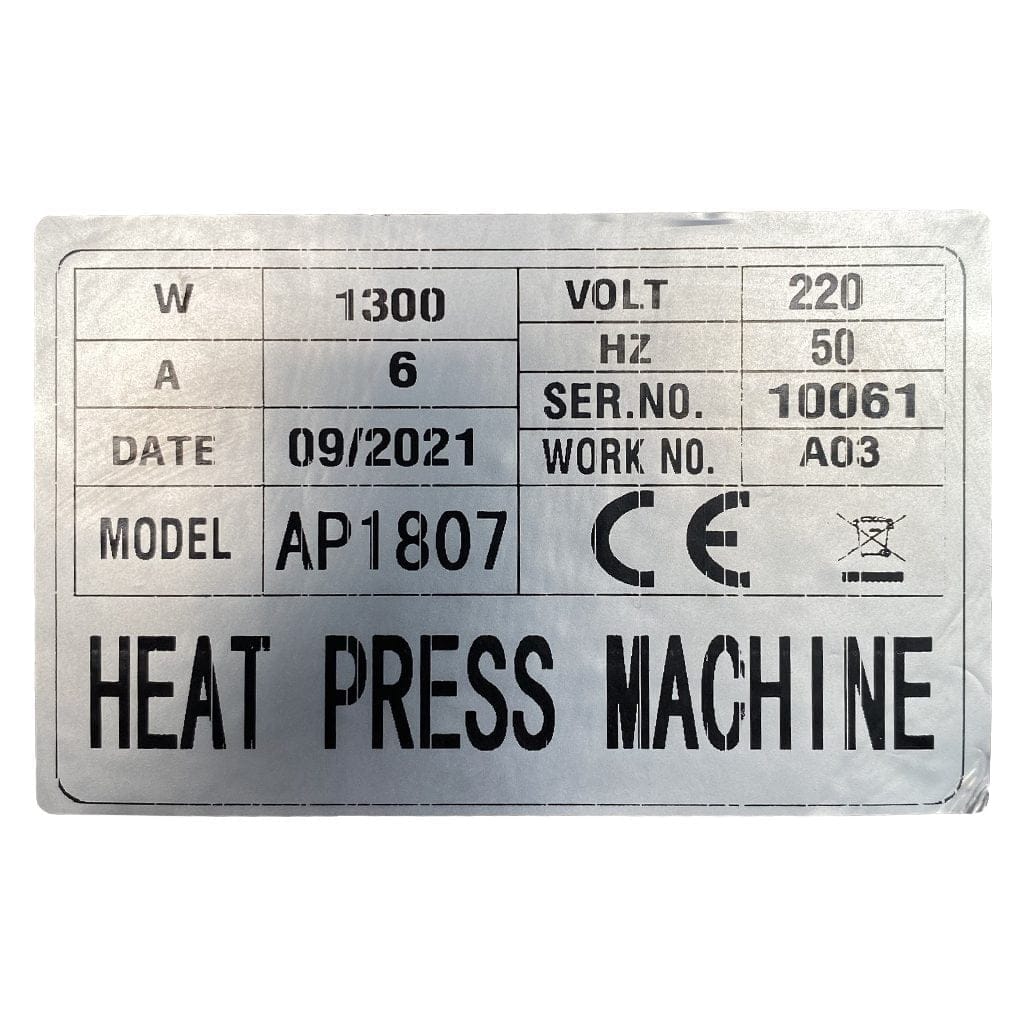

H41807 Digital Rotary Shoe Heat Press Label

Swing Away Shoe Heat Press 15 x 11 Inches 38 x 28 Cm [AP1807]

Name: Swing Away Shoe Heat Press 15 x 11 Inches 38 x 28 Cm [AP1807]
SKU: AUMHP400107
Availability: InStock
Rating: 3.00 (1 reviews)

SKU: AUMHP400107

Rated 3.00 out of 5 based on 1 customer rating

(1 customer review)

Original price was: $995.95.Current price is: $699.95.

The Shoe Heat Press is a Heat Press Machine for sublimation, transfer printing and compatible blank production. Key features include Swing-away design provides full access to the platen, allowing safe operation across both flat and shoe pressing applications.

2 in stock

SKU: AUMHP400107 Categories: Heat Presses, Swing Away Heat Presses Tags: Electric Machinery, Heat Press, Machinery

Swing Away Shoe Heat Press 15 x 11 Inches 38 x 28 Cm [AP1807] Description

📖 What to know about the Shoe Heat Press

Great heat press for a beginner to advanced user.

This is the most useable heat press in the range, with the ability to press sleeves, shoes and all other areas, it makes creativity endless. Comes with different bases including a standard flat press base for pressing different areas of garments.

Well constructed with a metal frame, consistent reliable result, best value for money heat presses in Australia.

Our heat press machines are designed for printing textiles, t-shirts, mouse pads, puzzles, ceramic tiles and other flat surfaces items by using the flex, flocking, transfer printing paper, sublimation, dtf etc.

Our heat press machines are covered by a 12 month return to base warranty, we will either repair or replace your heat press if required but we have less than a 2% failure rate. Items like heating belt elements for mug presses are not covered under warranty and are considered a consumable.

For user manuals and more detail Click Here

📋 Swing Away Shoe Heat Press 15 x 11 Inches 38 x 28 Cm [AP1807] Features

Swing-away design provides full access to the platen, allowing safe operation across both flat and shoe pressing applications. ✓11 x 15 inch (28cm x 38cm) platen is ideal for smaller garments, logos, and detailed transfer applications. ✓Multi-platen system delivers refined flexibility, enabling seamless transitions across diverse product types. ✓Digital controls allow precise adjustment of temperature and time for consistent transfer results. ✓Provides consistent heat and pressure for clean, reliable transfers across different substrates. ✓Manual pressure adjustment allows fine-tuning for garments, shoes, and different materials. ✓Suitable for DTF, HTV, sublimation, and footwear transfers, offering flexible production capability. ✓

📏 Swing Away Shoe Heat Press 15 x 11 Inches 38 x 28 Cm [AP1807] Dimensions

Product Dimensions

Product Length	49.00 Cm (+/- 5%)
Product Width	39.50 Cm (+/- 5%)
Product Height	54.00 Cm (+/- 5%)
Product Weight	32.65 Kg (+/- 5%)

Shipping Dimensions

Shipping Length	51.00 Cm (+/- 5%)
Shipping Width	48.00 Cm (+/- 5%)
Shipping Height	53.00 Cm (+/- 5%)
Shipping Weight	41.00 Kg (+/- 5%)

Machine Footprint

Minimum Footprint Length	48.80 Cm (+/- 5%)
Minimum Footprint Width	39.50 Cm (+/- 5%)
Minimum Footprint Height	54.00 Cm (+/- 5%)
Maximum Footprint Length	76.00 Cm (+/- 5%)
Maximum Footprint Width	58.00 Cm (+/- 5%)
Maximum Footprint Height	65.00 Cm (+/- 5%)

📋 Swing Away Shoe Heat Press 15 x 11 Inches 38 x 28 Cm [AP1807] Includes

1 x Shoe Heat Press ✓1 x 2m Power Cord ✓1 x Sleeve Platen ✓1 x 38 x 28 Cm Platen ✓1 x Shoe Platen ✓

📋 Swing Away Shoe Heat Press 15 x 11 Inches 38 x 28 Cm [AP1807] Specifications

🎨 Colours

Primary	Green
Secondary	Black
Additional	Silver
Additional	Red

🧱 Materials

Primary	Metal
Secondary	Alloy
Additional	Electrical Components
Additional	Foam
Additional	Rubber

📄 Certifications and Compliance

Certification 1	CE
Certification 2	EMC
Certification 3	LVD
Certification 4	ROHS
Certification 5	UL
Certification 6	TUVV

🔌 Electrical Specifications

Plug Type	10A
Amps	6.5
Watts	1500
Volts	240
Hertz	50hz

⚙️ Machine Specifications

Platen Size	38 x 38 cm (15 x 15")
Temperature Range	0-400°C
Time Range	0-999 Seconds

👤 Age and Usage

Age Range	Adult
Adult Product	No

📋 Swing Away Shoe Heat Press 15 x 11 Inches 38 x 28 Cm [AP1807] Design

Heavy-Duty 5mm Steel Frame Construction

Built using thick, high-grade steel for maximum structural integrity. This provides exceptional rigidity, reduces flex under pressure, and ensures long-term durability in commercial environments.

All-Alloy Heat Plate Design

Manufactured from solid alloy rather than cast iron or mixed metals, allowing for superior heat conductivity, faster heat recovery, and more consistent temperature distribution across the entire platen.

Teflon-Coated Heat Plate Surface

Premium non-stick Teflon coating prevents scorching, reduces residue build-up, and protects garments and substrates while making cleaning fast and easy.

Uniform Pressure & Heat Distribution

The rigid frame combined with the alloy heat plate delivers even pressure and consistent heat from edge to edge, critical for professional sublimation, DTF, HTV, and transfer work.

Thermal Stability & Heat Retention

The alloy platen maintains stable temperatures with minimal fluctuation, improving transfer accuracy and reducing re-pressing or product waste.

📘 Product Instructions

Prepare Your Workspace and Materials

Set up your heat press on a stable, heat-resistant surface in a well-ventilated area. Gather your materials: the substrate (e.g., t-shirt or mug), transfer paper with your printed design, heat-resistant tape, and protective sheets like Teflon or butcher paper. Ensure your design is mirrored if needed for sublimation.

Set Temperature, Time, and Pressure

Plug in your heat press and turn it on. Refer to the product's recommended settings (found in our user manuals or product descriptions on printgeek.com.au). Typical ranges:Temperature: 180–200°C (356–392°F) for most sublimation items.Time: 30–60 seconds for fabrics; 180–240 seconds for mugs.Pressure: Medium to firm, depending on the material—adjust the knob or lever accordingly.Allow the press to preheat fully (usually 5–10 minutes) until it reaches the set temperature.

Position and Press

Place the substrate on the lower platen. Align your transfer paper face down on the item and secure with tape. Cover with a protective sheet to prevent scorching. Close the press firmly and start the timer. Apply even pressure—avoid opening mid-cycle.

Cool and Finish

Once the timer beeps, carefully lift the press (use heat-resistant gloves). Peel the transfer paper while hot for best results (or cool for certain materials). Let the item cool completely before handling or packaging.

Safety Tips

Always wear protective gloves and avoid touching hot surfaces.Unplug when not in use.For detailed settings per product, check our heat press user manuals at printgeek.com.au/heat-press-user-manuals.If you're new, practice on scraps to perfect your technique.For high-quality heat presses and supplies, browse our collection at Print Geek Australia. Questions? Contact our team for expert advice!

🎬 Videos about Swing Away Shoe Heat Press 15 x 11 Inches 38 x 28 Cm [AP1807]

▶️ No Current Video

No current videos are available for this product.

▶ Visit our YouTube Channel

Subscribe to be notified of new videos as they are released.

🛡️ Warranty & Returns

12 month return to base warranty, please see link for more information.

Warranty length: 12 months

View Return to Base Warranty

Warranty coverage is subject to product condition, correct use, manufacturer terms and the warranty conditions listed on the linked page.
