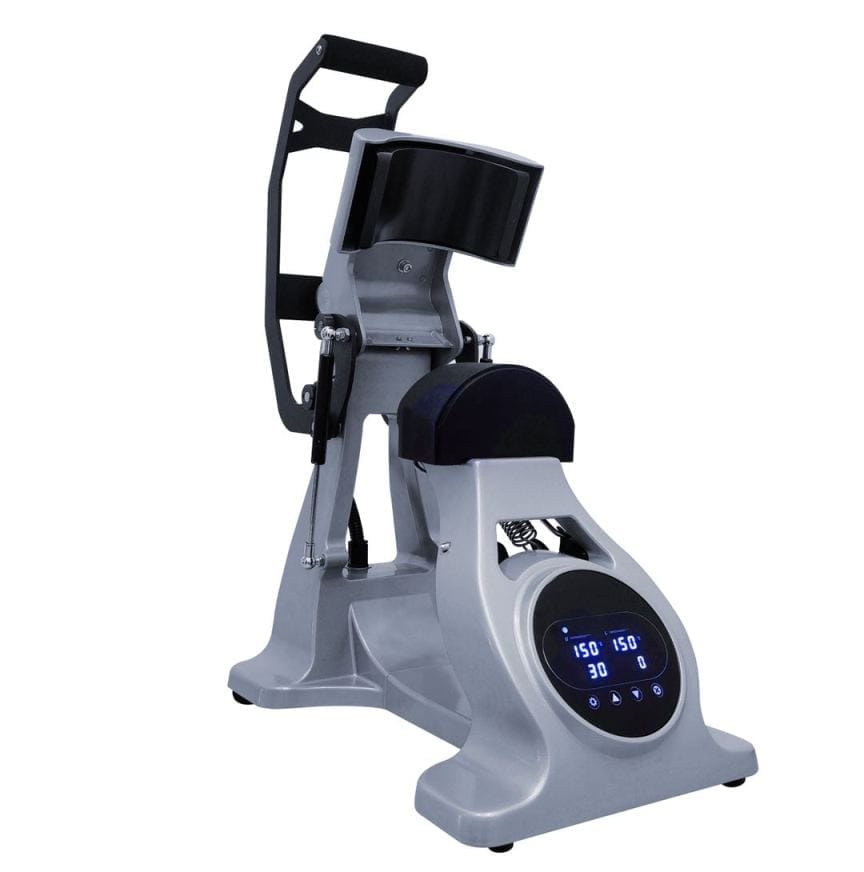

Digital Semi Auto Dual Heating Hat Heat Press Front Angled Open

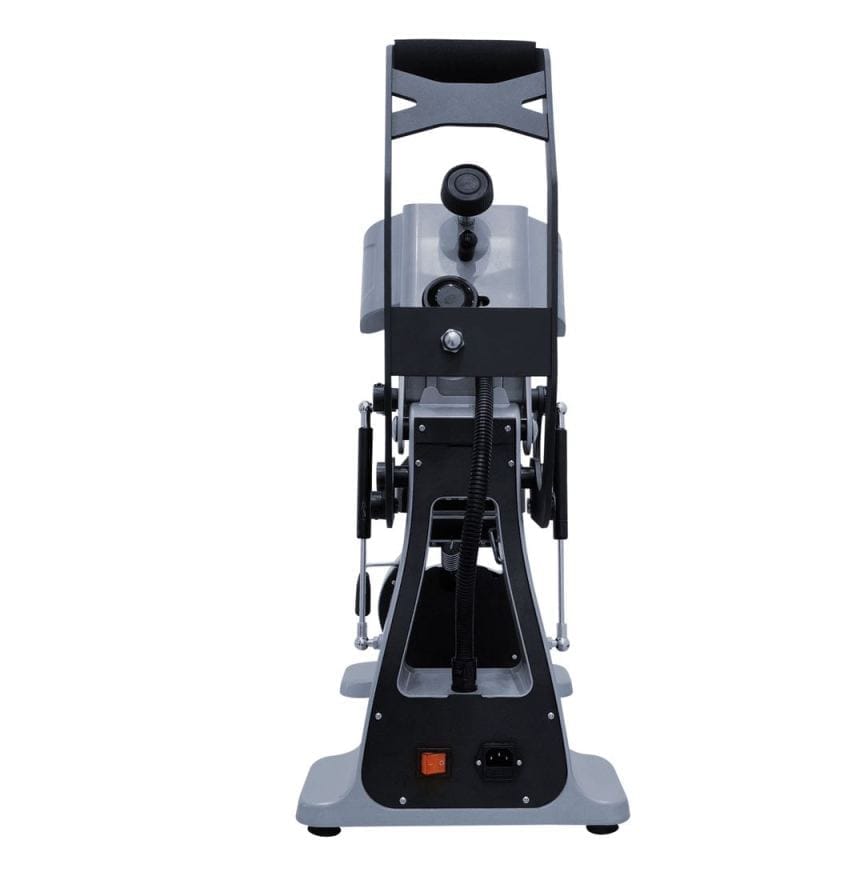

Digital Semi Auto Dual Heating Hat Heat Press Back Center

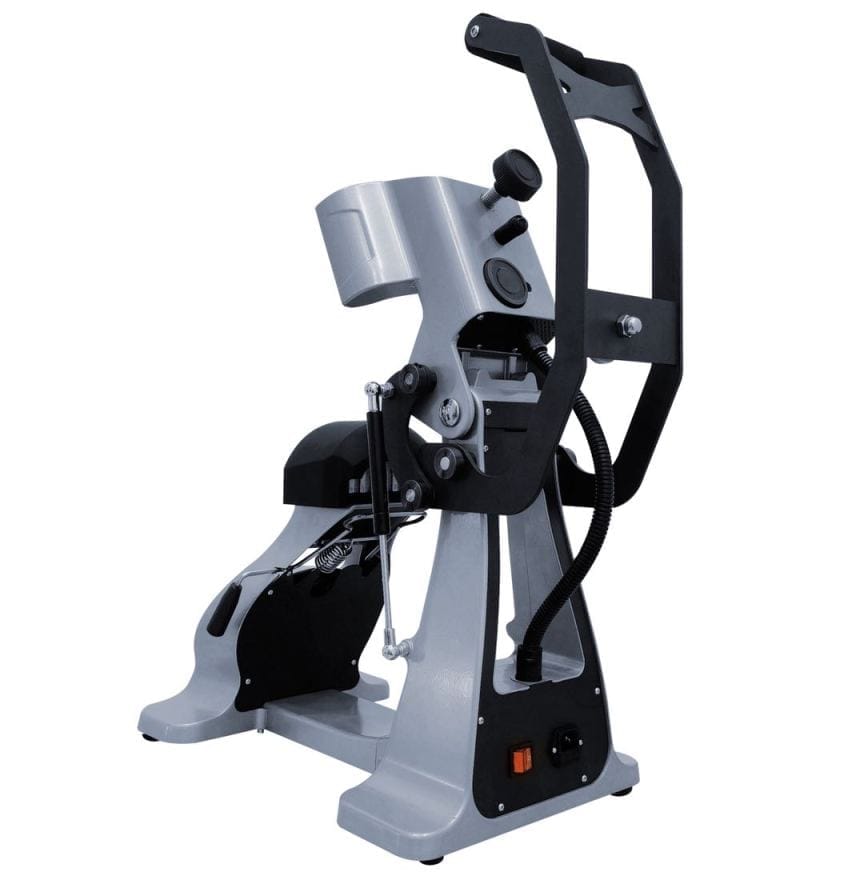

Digital Semi Auto Dual Heating Hat Heat Press Back Side Open

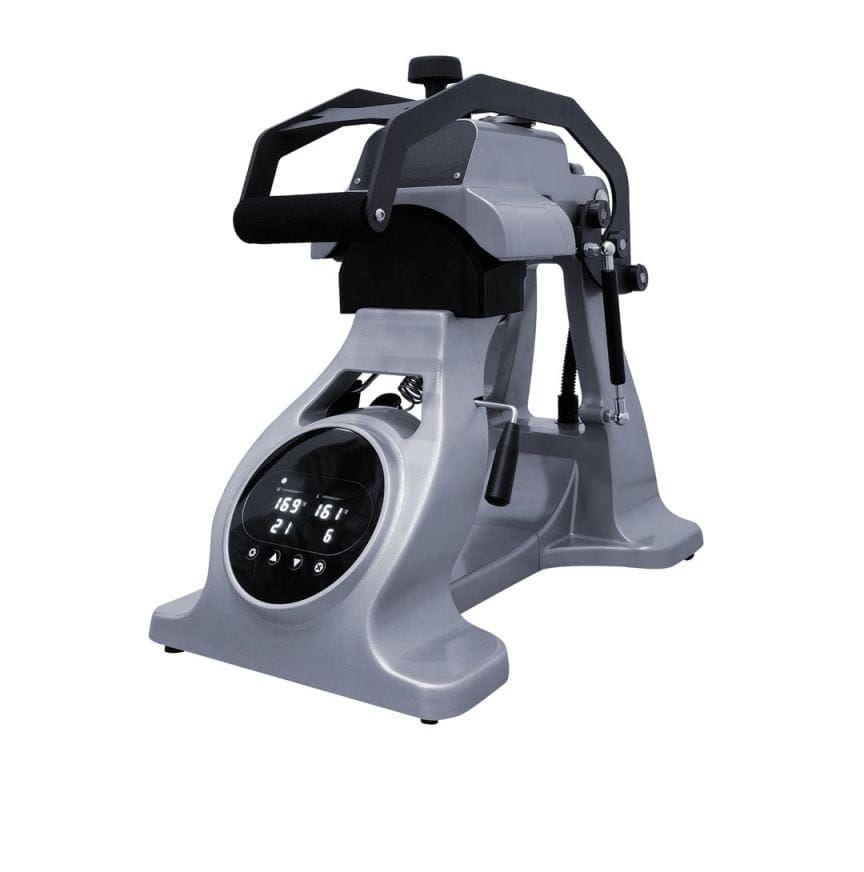

Digital Semi Auto Dual Heating Hat Heat Press Front Closed

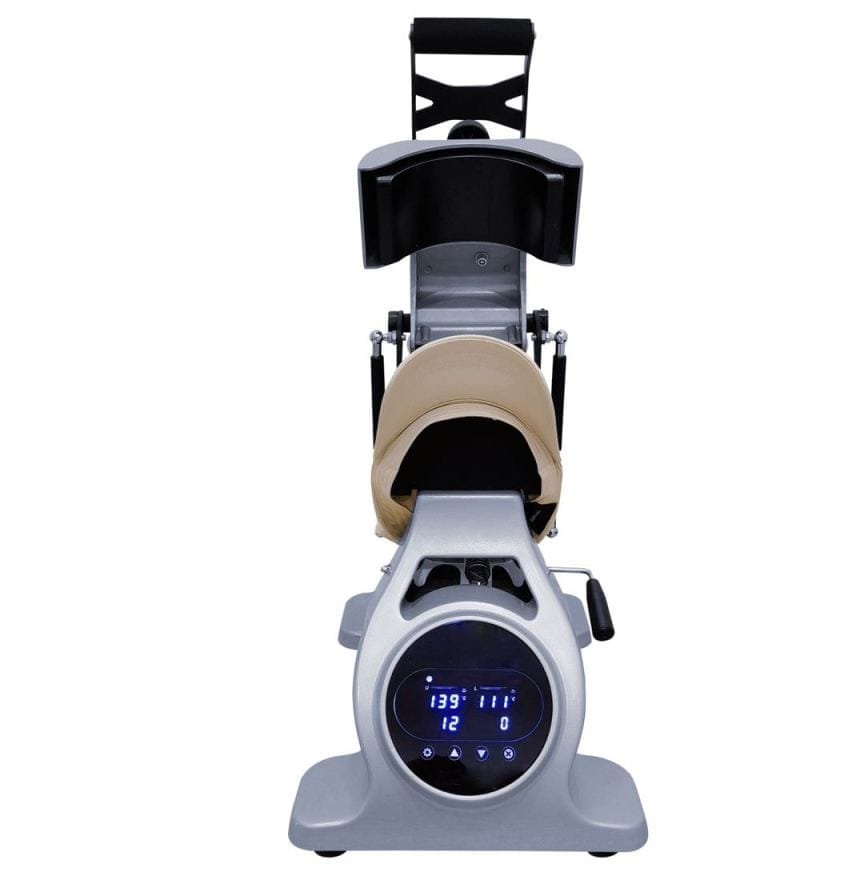

Digital Semi Auto Dual Heating Hat Heat Press Front With Hat

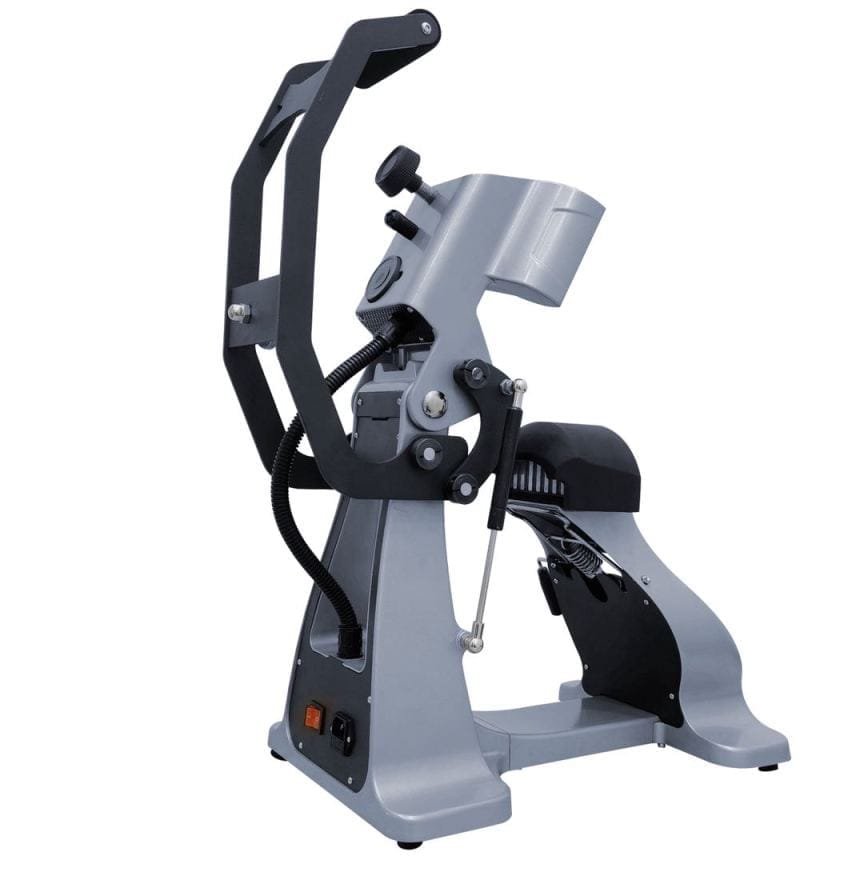

Digital Semi Auto Dual Heating Hat Heat Press Side Back Angle

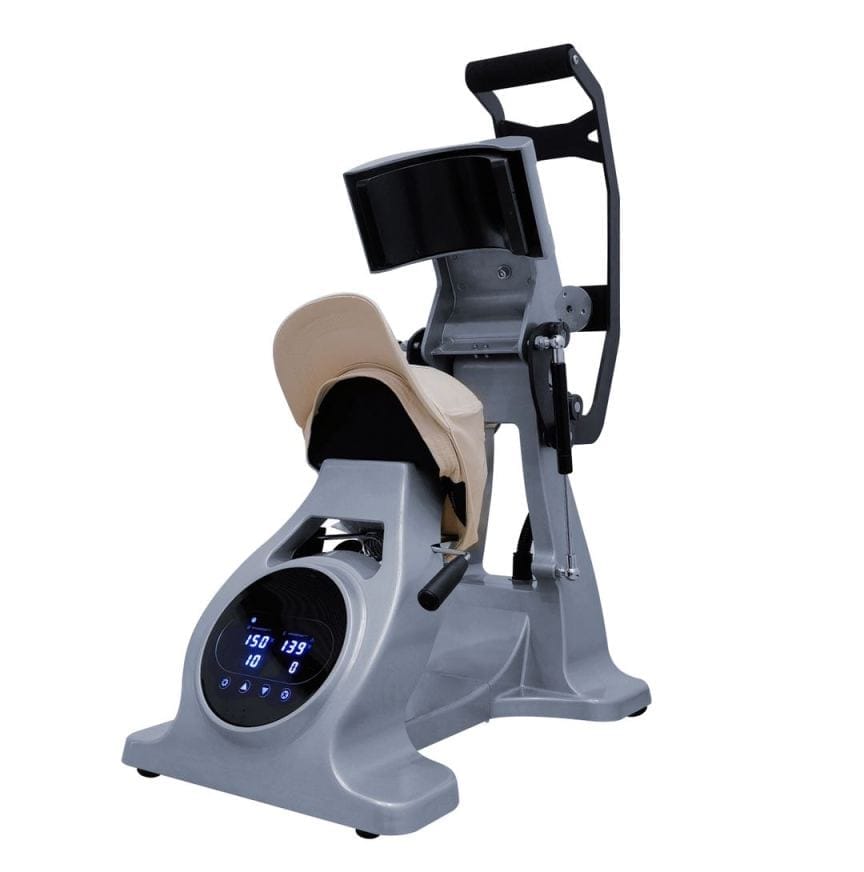

Digital Semi Auto Dual Heating Hat Heat Press Side With Hat

Clamshell Auto Open Hat Heat Press [CYCP2815]

Name: Clamshell Auto Open Hat Heat Press [CYCP2815]
SKU: RCMHP900115
Availability: OutOfStock

SKU: RCMHP900115

Original price was: $1,499.00.Current price is: $1,099.00.

The Clamshell Auto Open Hat Press [CYCP2815] is a Heat Press Machine for sublimation, transfer printing and compatible blank production. Key features include Dual heating elements apply heat from both sides of the cap, helping achieve more even transfers and consistent results.

Out of stock

Incoming stockIncoming stock expected around 30 Sep 2026.

Next deliveries

Date	Available qty
30 Sep 2026	12

No current backorders are allocated against this incoming stock.

Notify me when available This item is currently out of stock. Enter the quantity you need and your email address. We will notify you when enough stock is available. Notifications do not reserve stock; the first completed order secures it.

SKU: RCMHP900115 Categories: Hat Presses, Heat Presses Tags: Electric Machinery, Heat Press, Machinery

Clamshell Auto Open Hat Heat Press [CYCP2815] Description

📖 What to know about the Clamshell Auto Open Hat Press [CYCP2815]

Great heat press for a intermediate user doing sublimated hats and caps regularly.

Pressing hats is never easy, but this makes light work of the job.

Well constructed with a metal frame, consistent reliable result, best value for money heat presses in Australia.

Our heat press machines are covered by a 12 month return to base warranty, we will either repair or replace your heat press if required but we have less than a 2% failure rate. Items like heating belt elements for mug presses are not covered under warranty and are considered a consumable.

For user manuals and more detail Click Here

NOTICE: Packaged with foam, plastic bags and moisture absorbing satchels, please keep out of reach of children.

📋 Clamshell Auto Open Hat Heat Press [CYCP2815] Features

Dual heating elements apply heat from both sides of the cap, helping achieve more even transfers and consistent results. ✓Semi-automatic operation reduces manual effort while improving consistency and production efficiency. ✓Purpose-built curved platen design ensures accurate positioning and professional results on caps and headwear. ✓Digital controls allow precise adjustment of temperature and pressing time for repeatable production results. ✓Precision-engineered heating system delivers refined transfer quality through balanced thermal and pressure application. ✓Precision pressure adjustment ensures optimal contact and refined transfer quality across diverse headwear products. ✓Perfect for producing branded caps, sportswear, uniforms, promotional products, and custom merchandise. ✓

📏 Clamshell Auto Open Hat Heat Press [CYCP2815] Dimensions

Product Dimensions

Product Length	48.00 Cm (+/- 5%)
Product Width	30.00 Cm (+/- 5%)
Product Height	73.00 Cm (+/- 5%)
Product Weight	19.50 Kg (+/- 5%)

Shipping Dimensions

Shipping Length	60.00 Cm (+/- 5%)
Shipping Width	58.00 Cm (+/- 5%)
Shipping Height	39.00 Cm (+/- 5%)
Shipping Weight	25.00 Kg (+/- 5%)

Machine Footprint

Minimum Footprint Length	48.00 Cm (+/- 5%)
Minimum Footprint Width	30.00 Cm (+/- 5%)
Minimum Footprint Height	49.00 Cm (+/- 5%)
Maximum Footprint Length	61.00 Cm (+/- 5%)
Maximum Footprint Width	30.00 Cm (+/- 5%)
Maximum Footprint Height	73.00 Cm (+/- 5%)

📋 Clamshell Auto Open Hat Heat Press [CYCP2815] Includes

1 x Clamshell Auto Open Hat Press [CYCP2815] ✓1 x 2m Power Cord ✓

📋 Clamshell Auto Open Hat Heat Press [CYCP2815] Specifications

🎨 Colours

Primary	Green
Secondary	Black
Additional	Silver
Additional	Red

🧱 Materials

Primary	Metal
Secondary	Alloy
Additional	Electrical Components
Additional	Foam
Additional	Rubber

📄 Certifications and Compliance

Certification 1	CE
Certification 2	EMC
Certification 3	LVD
Certification 4	ROHS
Certification 5	UL
Certification 6	TUVV

🔌 Electrical Specifications

Plug Type	10A
Amps	3.2
Watts	740
Volts	230
Hertz	50hz

⚙️ Machine Specifications

Temperature Range	0-400°C
Time Range	0-999 Seconds

👤 Age and Usage

Age Range	Adult
Adult Product	No

📋 Clamshell Auto Open Hat Heat Press [CYCP2815] Design

Heavy-Duty 5mm Steel Frame Construction

Built using thick, high-grade steel for maximum structural integrity. This provides exceptional rigidity, reduces flex under pressure, and ensures long-term durability in commercial environments.

All-Alloy Heat Plate Design

Manufactured from solid alloy rather than cast iron or mixed metals, allowing for superior heat conductivity, faster heat recovery, and more consistent temperature distribution across the entire platen.

Teflon-Coated Heat Plate Surface

Premium non-stick Teflon coating prevents scorching, reduces residue build-up, and protects garments and substrates while making cleaning fast and easy.

Uniform Pressure & Heat Distribution

The rigid frame combined with the alloy heat plate delivers even pressure and consistent heat from edge to edge, critical for professional sublimation, DTF, HTV, and transfer work.

Thermal Stability & Heat Retention

The alloy platen maintains stable temperatures with minimal fluctuation, improving transfer accuracy and reducing re-pressing or product waste.

📘 Product Instructions

Prepare Your Workspace and Materials

Set up your heat press on a stable, heat-resistant surface in a well-ventilated area. Gather your materials: the substrate (e.g., t-shirt or mug), transfer paper with your printed design, heat-resistant tape, and protective sheets like Teflon or butcher paper. Ensure your design is mirrored if needed for sublimation.

Set Temperature, Time, and Pressure

Plug in your heat press and turn it on. Refer to the product's recommended settings (found in our user manuals or product descriptions on printgeek.com.au). Typical ranges:Temperature: 180–200°C (356–392°F) for most sublimation items.Time: 30–60 seconds for fabrics; 180–240 seconds for mugs.Pressure: Medium to firm, depending on the material—adjust the knob or lever accordingly.Allow the press to preheat fully (usually 5–10 minutes) until it reaches the set temperature.

Position and Press

Place the substrate on the lower platen. Align your transfer paper face down on the item and secure with tape. Cover with a protective sheet to prevent scorching. Close the press firmly and start the timer. Apply even pressure—avoid opening mid-cycle.

Cool and Finish

Once the timer beeps, carefully lift the press (use heat-resistant gloves). Peel the transfer paper while hot for best results (or cool for certain materials). Let the item cool completely before handling or packaging.

Safety Tips

Always wear protective gloves and avoid touching hot surfaces.Unplug when not in use.For detailed settings per product, check our heat press user manuals at printgeek.com.au/heat-press-user-manuals.If you're new, practice on scraps to perfect your technique.For high-quality heat presses and supplies, browse our collection at Print Geek Australia. Questions? Contact our team for expert advice!
