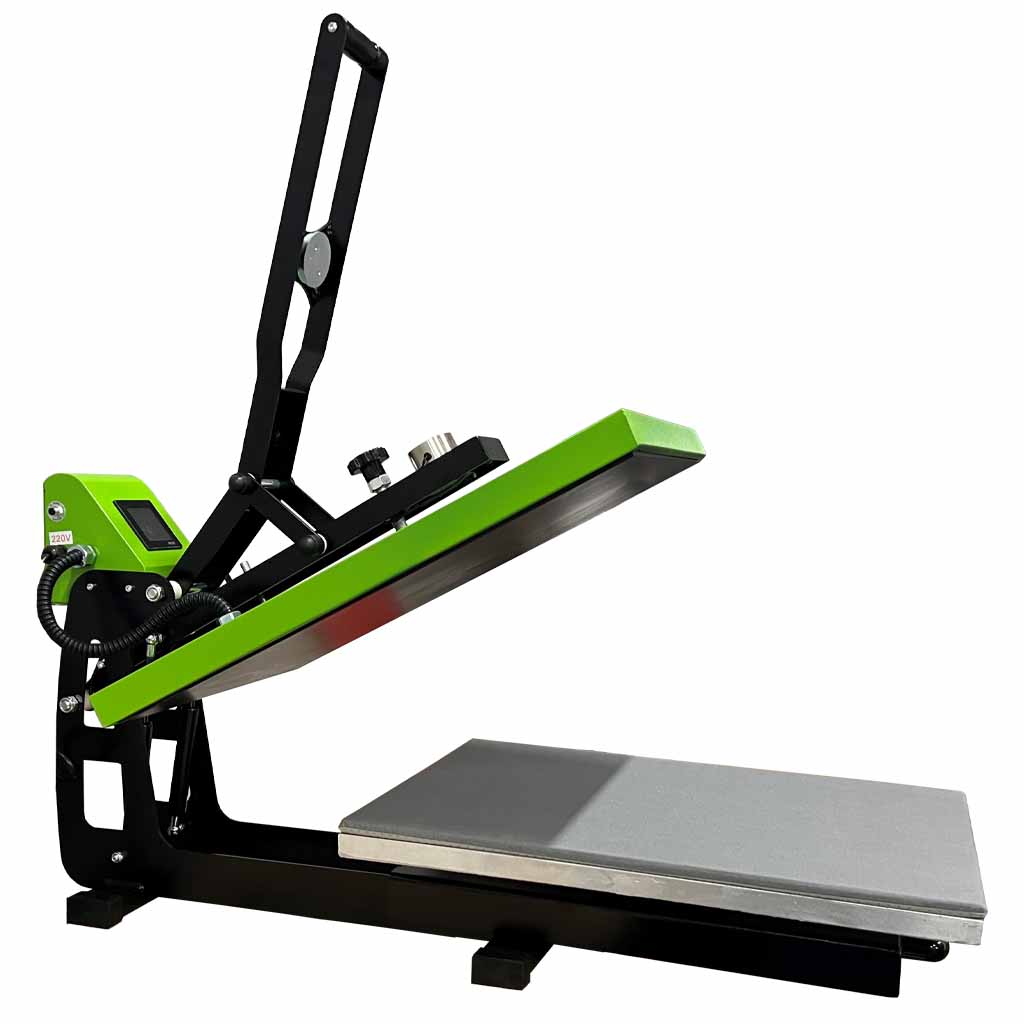

H27153 Heat Press Auto Open Sliding Base Australia Auplex Quality Cheap Best Value Extended 40 60 cm 16 24 Inch

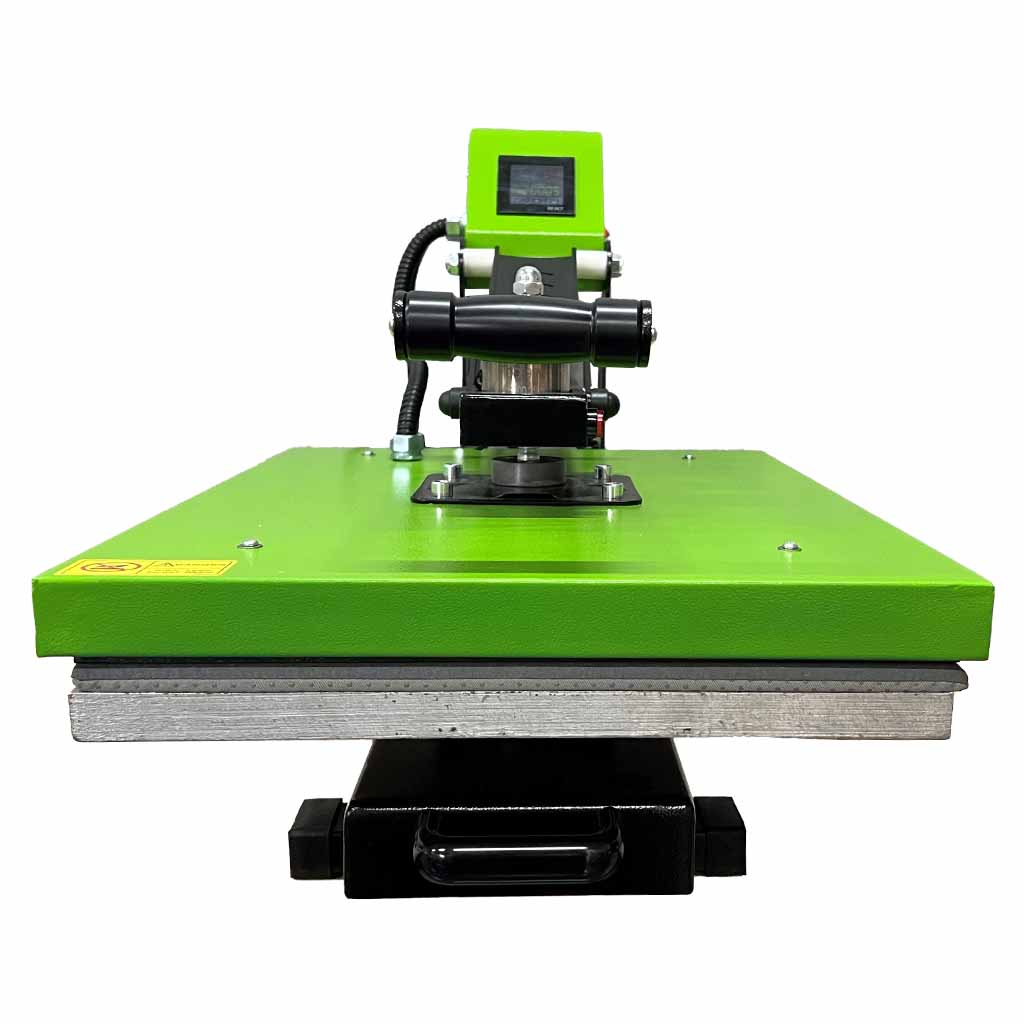

H27153 Heat Press Auto Open Sliding Base Australia Auplex Quality Cheap Best Value Front 40 60 cm 16 24 Inch

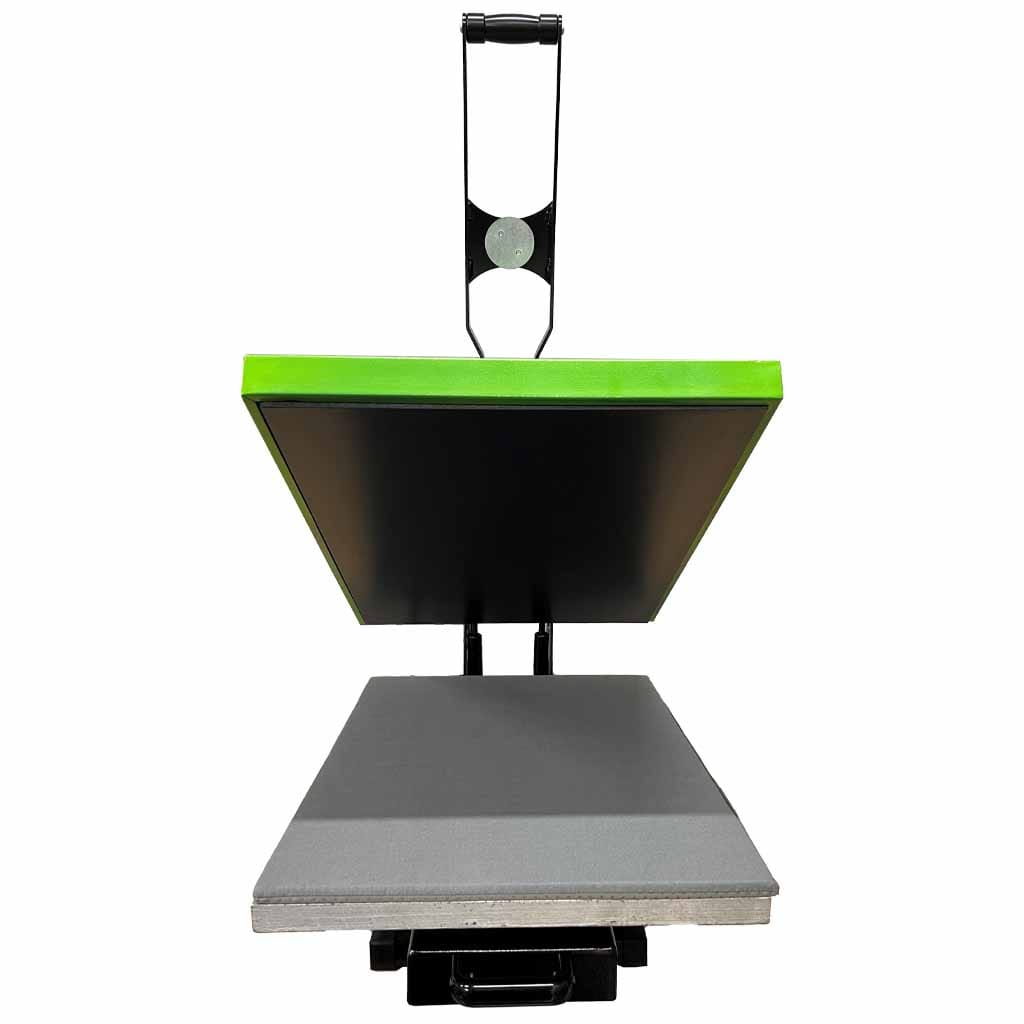

H27153 Heat Press Auto Open Sliding Base Australia Auplex Quality Cheap Best Value Maximum Open 40 60 cm 16 24 Inch

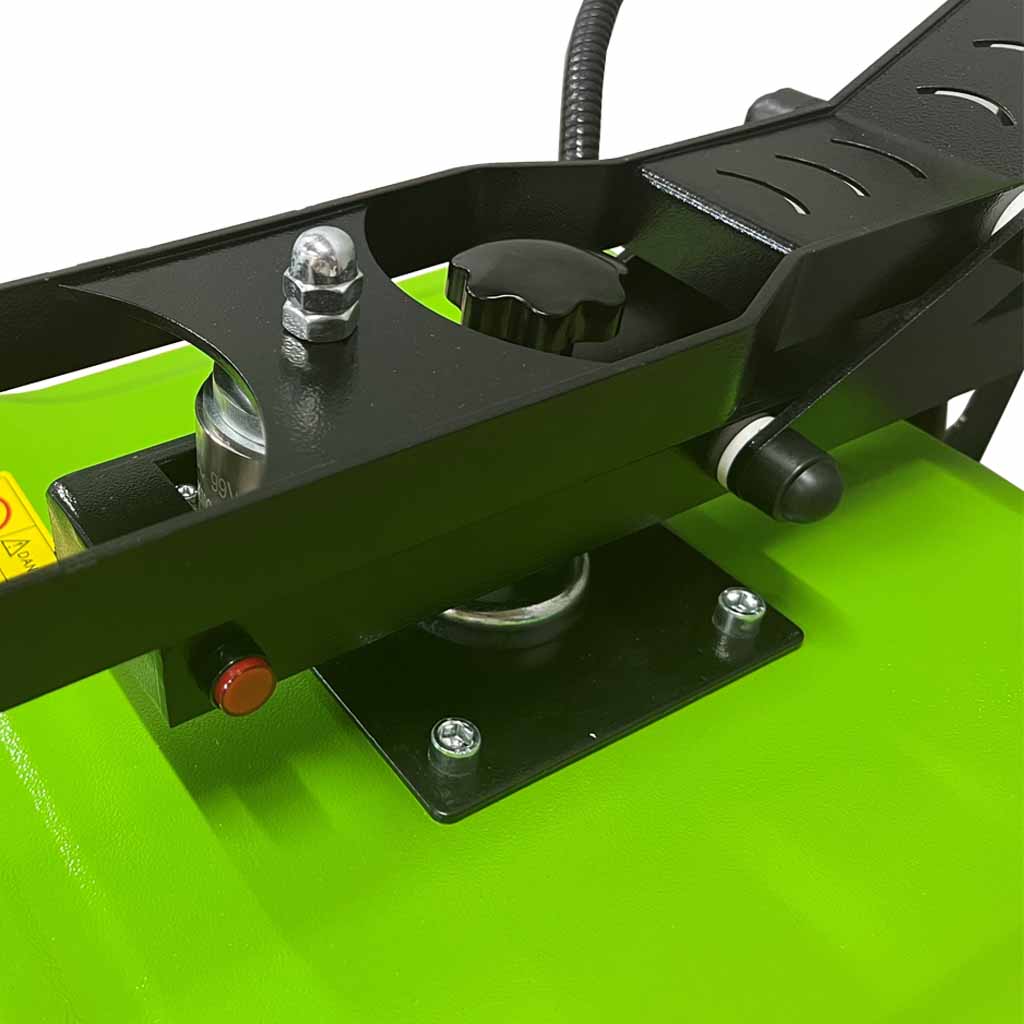

H27153 Heat Press Auto Open Sliding Base Australia Auplex Quality Cheap Best Value Handle 40 60 cm 16 24 Inch

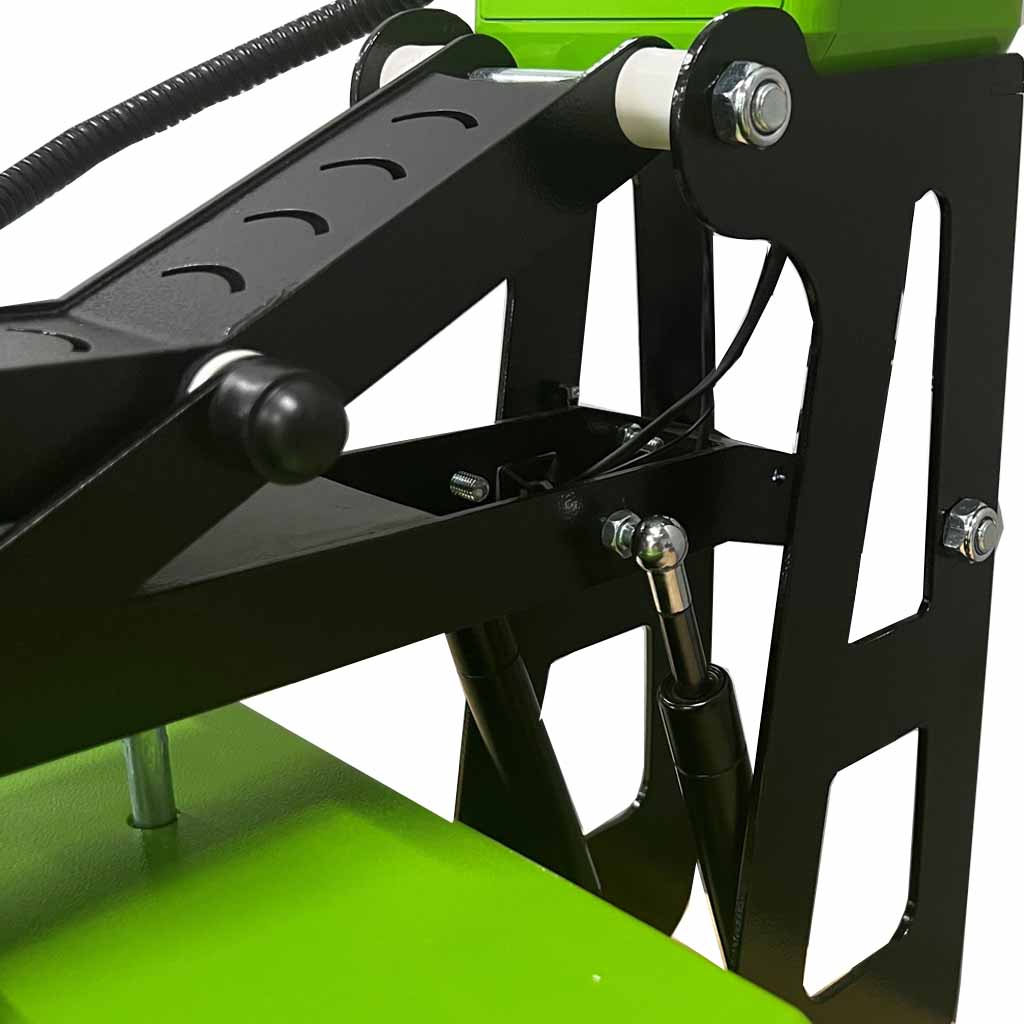

H27153 Heat Press Auto Open Sliding Base Australia Auplex Quality Cheap Best Value Shaft 40 60 cm 16 24 Inch

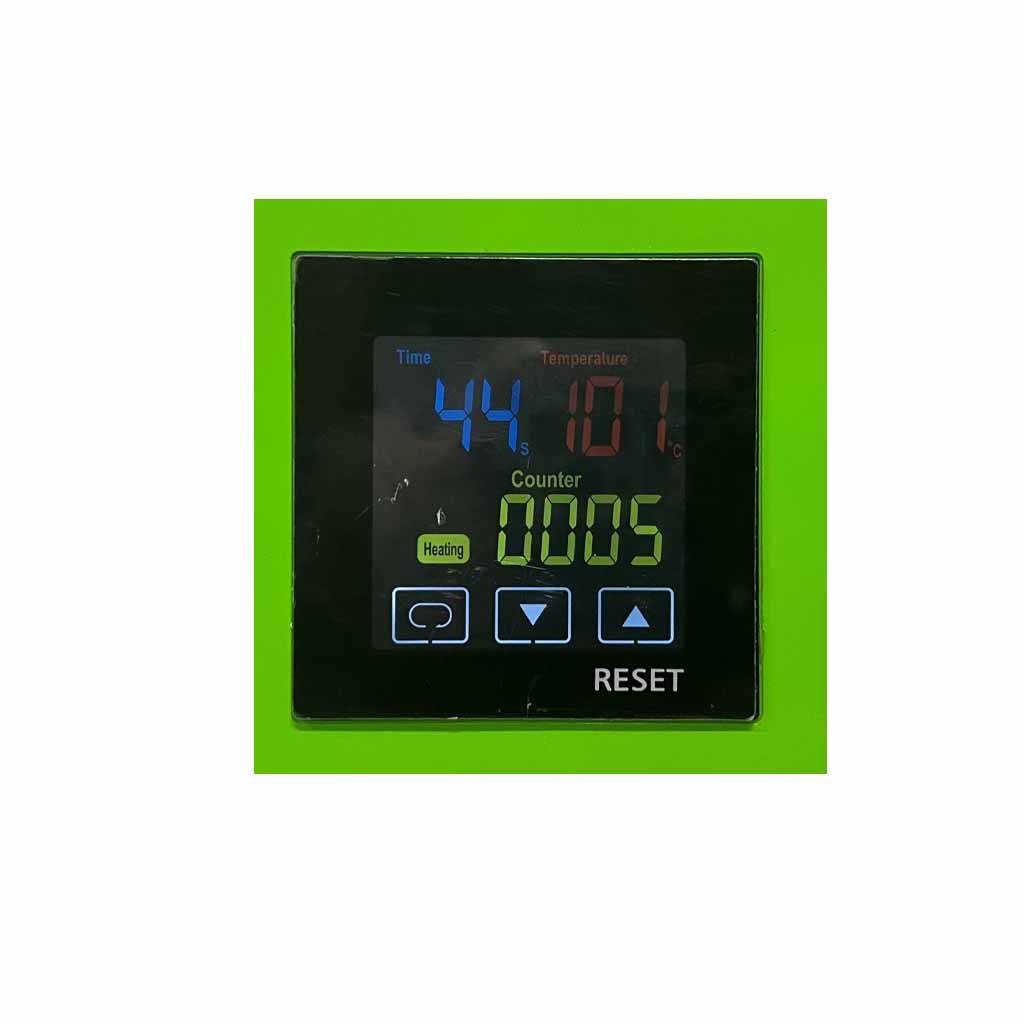

H27153 Heat Press Auto Open Sliding Base Australia Auplex Quality Cheap Best Value Control 40 60 cm 16 24 Inch

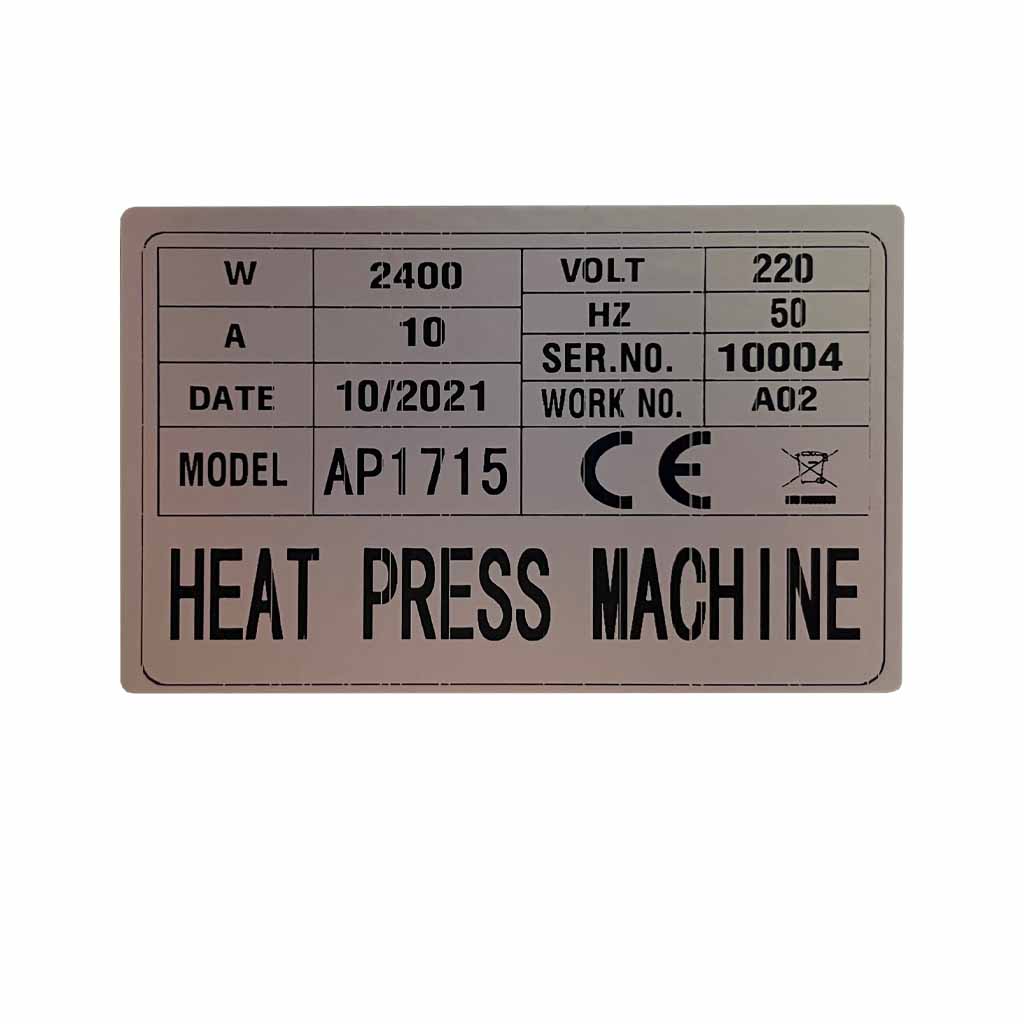

H27153 Heat Press Auto Open Sliding Base Australia Auplex Quality Cheap Best Value Plate 40 60 cm 16 24 Inch

H27153 Heat Press Auto Open Sliding Base Australia Auplex Quality Cheap Best Value Dimensions 40 60 cm 16 24 Inch

Clamshell Auto Open Sliding Tray Heat Press 16 x 24 Inches 40 x 60 Cm [AP1715]

Name: Clamshell Auto Open Sliding Tray Heat Press 16 x 24 Inches 40 x 60 Cm [AP1715]
SKU: AUMHP200153
Availability: InStock
Rating: 5.00 (5 reviews)

SKU: AUMHP200153

Rated 5.00 out of 5 based on 5 customer ratings

(5 customer reviews)

Original price was: $1,595.00.Current price is: $1,195.00.

The 40 x 60 Clamshell Auto Open Heat Press is a Heat Press Machine for sublimation, transfer printing and compatible blank production. Key features include Clamshell opening design allows quick operation with a compact footprint, ideal for efficient workflows.

1 in stock

Need more stock? Enter the quantity you need and your email address. We will notify you when enough stock is available. Notifications do not reserve stock; the first completed order secures it.

SKU: AUMHP200153 Categories: Clamshell Heat Presses, Heat Presses Tags: Electric Machinery, Heat Press, Machinery

Clamshell Auto Open Sliding Tray Heat Press 16 x 24 Inches 40 x 60 Cm [AP1715] Description

📖 What to know about the 40 x 60 Clamshell Auto Open Heat Press

Great heat press for a beginner to advanced user.

Well constructed with a metal frame, consistent reliable result, best value for money heat presses in Australia.

Our heat press machines are designed for printing textiles, t-shirts, mouse pads, puzzles, ceramic tiles and other flat surfaces items by using the flex, flocking, transfer printing paper, sublimation, dtf etc.

Our heat press machines are covered by a 12 month return to base warranty, we will either repair or replace your heat press if required but we have less than a 2% failure rate.

Items like heating belt elements for mug presses are not covered under warranty and are considered a consumable.

For user manuals and more detail Click Here

📋 Clamshell Auto Open Sliding Tray Heat Press 16 x 24 Inches 40 x 60 Cm [AP1715] Features

Clamshell opening design allows quick operation with a compact footprint, ideal for efficient workflows. ✓16 x 24 inch (40 x 60cm) platen is ideal for larger garments, full-size designs, and high-coverage transfer applications. ✓Sliding tray design allows safe, easy loading and unloading away from the heat plate, improving workflow efficiency and operator safety. ✓Magnet-controlled auto-open feature releases the platen automatically at the end of the cycle, preventing over-pressing and improving workflow efficiency. ✓Heating system reaches temperature quickly and maintains performance during continuous use. ✓Digital controller allows precise adjustment of temperature and pressing time for repeatable results. ✓Engineered for uniform thermal and pressure distribution to achieve high-quality results every time. ✓Manual pressure adjustment allows you to fine-tune pressing force for different materials. ✓Suitable for DTF, sublimation, HTV, and other heat transfer applications. ✓

📏 Clamshell Auto Open Sliding Tray Heat Press 16 x 24 Inches 40 x 60 Cm [AP1715] Dimensions

Product Dimensions

Product Length	81.00 Cm (+/- 5%)
Product Width	42.50 Cm (+/- 5%)
Product Height	51.50 Cm (+/- 5%)
Product Weight	37.65 Kg (+/- 5%)

Shipping Dimensions

Shipping Length	89.50 Cm (+/- 5%)
Shipping Width	49.00 Cm (+/- 5%)
Shipping Height	61.50 Cm (+/- 5%)
Shipping Weight	56.00 Kg (+/- 5%)

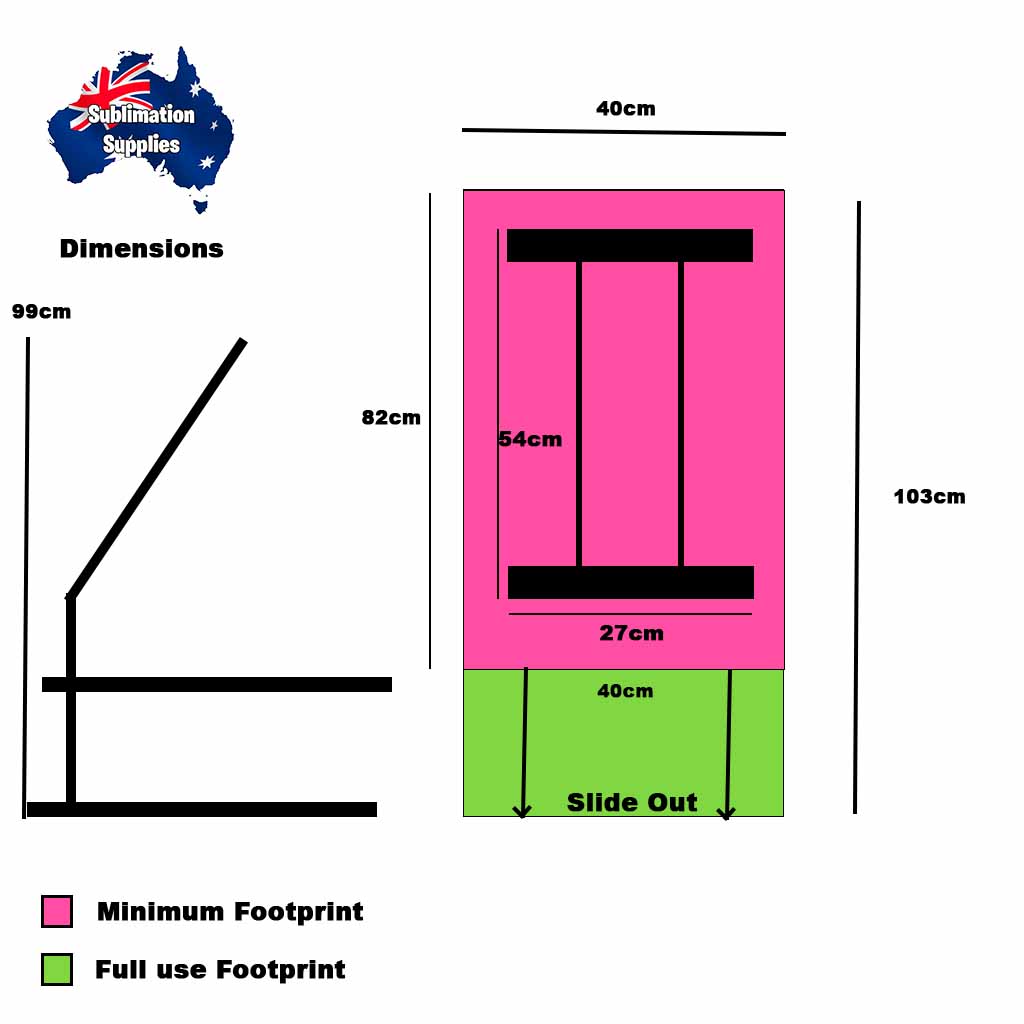

Machine Footprint

Minimum Footprint Length	81.00 Cm (+/- 5%)
Minimum Footprint Width	42.50 Cm (+/- 5%)
Minimum Footprint Height	51.50 Cm (+/- 5%)
Maximum Footprint Length	102.00 Cm (+/- 5%)
Maximum Footprint Width	42.50 Cm (+/- 5%)
Maximum Footprint Height	101.00 Cm (+/- 5%)

📋 Clamshell Auto Open Sliding Tray Heat Press 16 x 24 Inches 40 x 60 Cm [AP1715] Includes

1 x 40 x 60 Clamshell Auto Open Heat Press ✓1 x 2m Power Cord ✓1 x 40x60cm Foam Press Pad ✓1 x 40x60cm Silicone Press Pad ✓

📋 Clamshell Auto Open Sliding Tray Heat Press 16 x 24 Inches 40 x 60 Cm [AP1715] Specifications

🎨 Colours

Primary	Green
Secondary	Black
Additional	Silver
Additional	Red

🧱 Materials

Primary	Metal
Secondary	Alloy
Additional	Electrical Components
Additional	Foam
Additional	Rubber

📄 Certifications and Compliance

Certification 1	CE
Certification 2	EMC
Certification 3	LVD
Certification 4	ROHS
Certification 5	UL
Certification 6	TUVV

🔌 Electrical Specifications

Plug Type	10A
Amps	11.9
Watts	2700
Volts	230
Hertz	50hz

⚙️ Machine Specifications

Platen Size	40 x 60 cm (16 x 24")
Temperature Range	0-400°C
Time Range	0-999 Seconds

👤 Age and Usage

Age Range	Adult
Adult Product	No

📋 Clamshell Auto Open Sliding Tray Heat Press 16 x 24 Inches 40 x 60 Cm [AP1715] Design

Heavy-Duty 5mm Steel Frame Construction

Built using thick, high-grade steel for maximum structural integrity. This provides exceptional rigidity, reduces flex under pressure, and ensures long-term durability in commercial environments.

All-Alloy Heat Plate Design

Manufactured from solid alloy rather than cast iron or mixed metals, allowing for superior heat conductivity, faster heat recovery, and more consistent temperature distribution across the entire platen.

Teflon-Coated Heat Plate Surface

Premium non-stick Teflon coating prevents scorching, reduces residue build-up, and protects garments and substrates while making cleaning fast and easy.

Uniform Pressure & Heat Distribution

The rigid frame combined with the alloy heat plate delivers even pressure and consistent heat from edge to edge, critical for professional sublimation, DTF, HTV, and transfer work.

Thermal Stability & Heat Retention

The alloy platen maintains stable temperatures with minimal fluctuation, improving transfer accuracy and reducing re-pressing or product waste.

📘 Product Instructions

Prepare Your Workspace and Materials

Set up your heat press on a stable, heat-resistant surface in a well-ventilated area. Gather your materials: the substrate (e.g., t-shirt or mug), transfer paper with your printed design, heat-resistant tape, and protective sheets like Teflon or butcher paper. Ensure your design is mirrored if needed for sublimation.

Set Temperature, Time, and Pressure

Plug in your heat press and turn it on. Refer to the product's recommended settings (found in our user manuals or product descriptions on printgeek.com.au). Typical ranges:Temperature: 180–200°C (356–392°F) for most sublimation items.Time: 30–60 seconds for fabrics; 180–240 seconds for mugs.Pressure: Medium to firm, depending on the material—adjust the knob or lever accordingly.Allow the press to preheat fully (usually 5–10 minutes) until it reaches the set temperature.

Position and Press

Place the substrate on the lower platen. Align your transfer paper face down on the item and secure with tape. Cover with a protective sheet to prevent scorching. Close the press firmly and start the timer. Apply even pressure—avoid opening mid-cycle.

Cool and Finish

Once the timer beeps, carefully lift the press (use heat-resistant gloves). Peel the transfer paper while hot for best results (or cool for certain materials). Let the item cool completely before handling or packaging.

Safety Tips

Always wear protective gloves and avoid touching hot surfaces.Unplug when not in use.For detailed settings per product, check our heat press user manuals at printgeek.com.au/heat-press-user-manuals.If you're new, practice on scraps to perfect your technique.For high-quality heat presses and supplies, browse our collection at Print Geek Australia. Questions? Contact our team for expert advice!

🎬 Videos about Clamshell Auto Open Sliding Tray Heat Press 16 x 24 Inches 40 x 60 Cm [AP1715]

AP1715 Demonstration Video

A short video to show you through the operations of the AP1715 heat press machine.

🛡️ Warranty & Returns

12 month return to base warranty, please see link for more information.

Warranty length: 12 months

View Return to Base Warranty

Warranty coverage is subject to product condition, correct use, manufacturer terms and the warranty conditions listed on the linked page.
