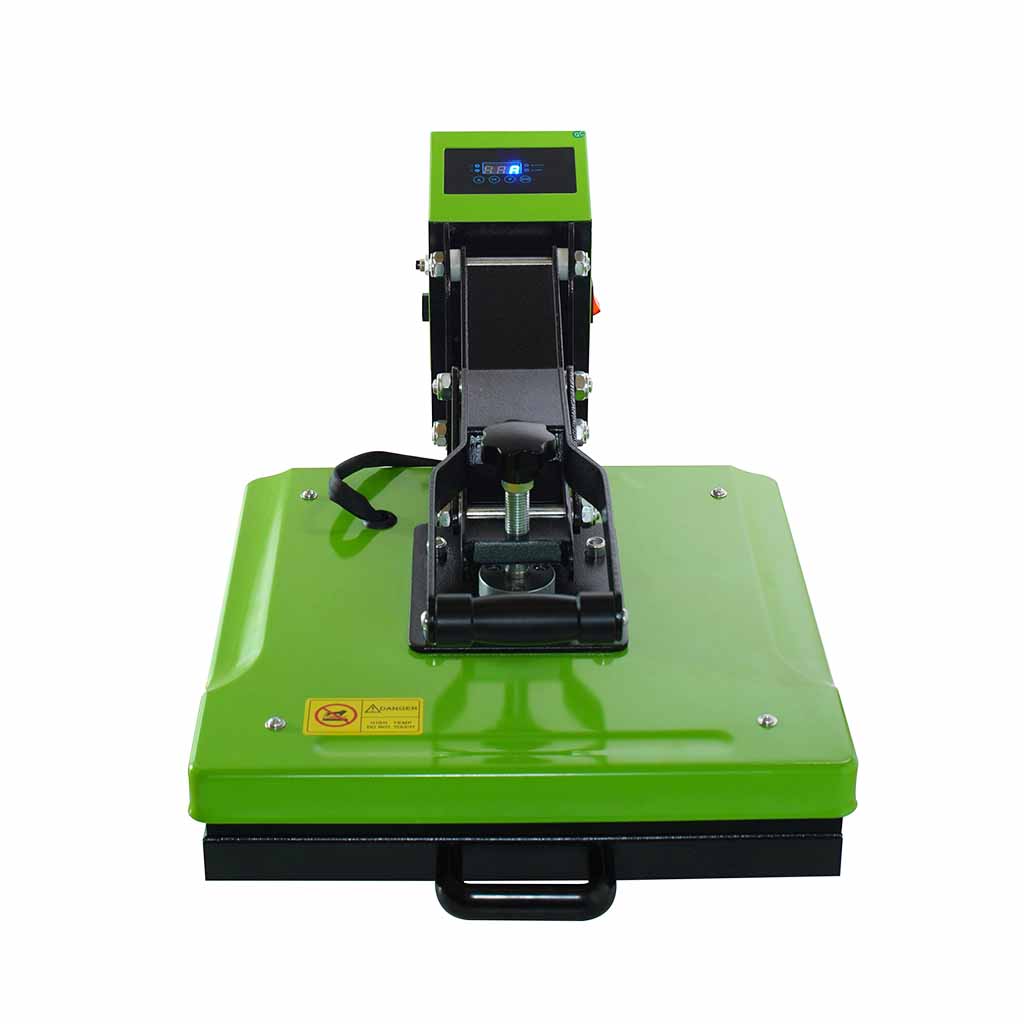

H54805 Combination Digital Clamshell Mug Heat Press 15 x 15 inches 38 x 38 cm Front 1

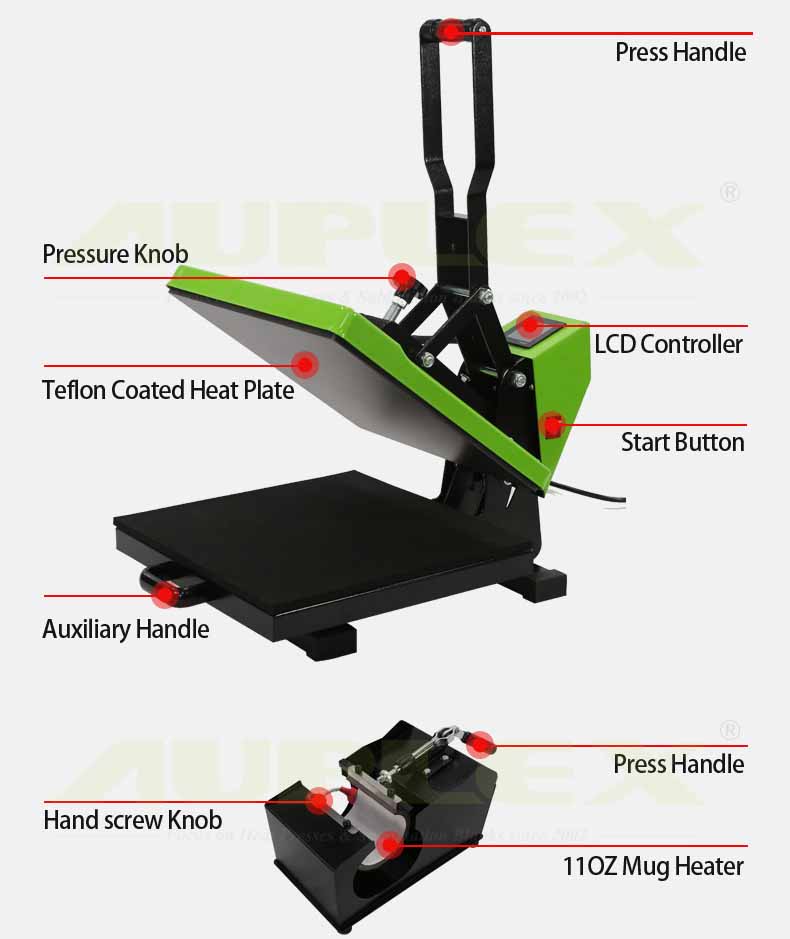

H54805 Combination Digital Clamshell Mug Heat Press 15 x 15 inches 38 x 38 cm Diagram

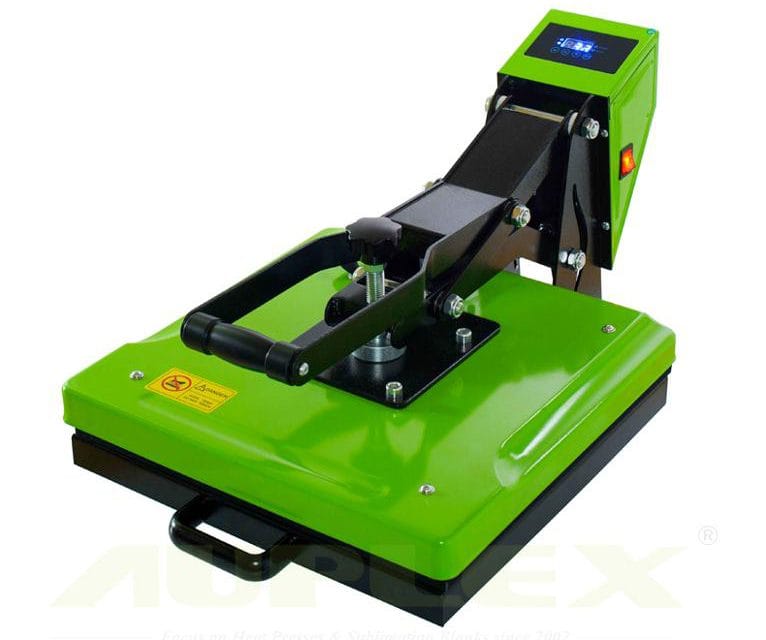

H54805 Combination Digital Clamshell Mug Heat Press 15 x 15 inches 38 x 38 cm Left

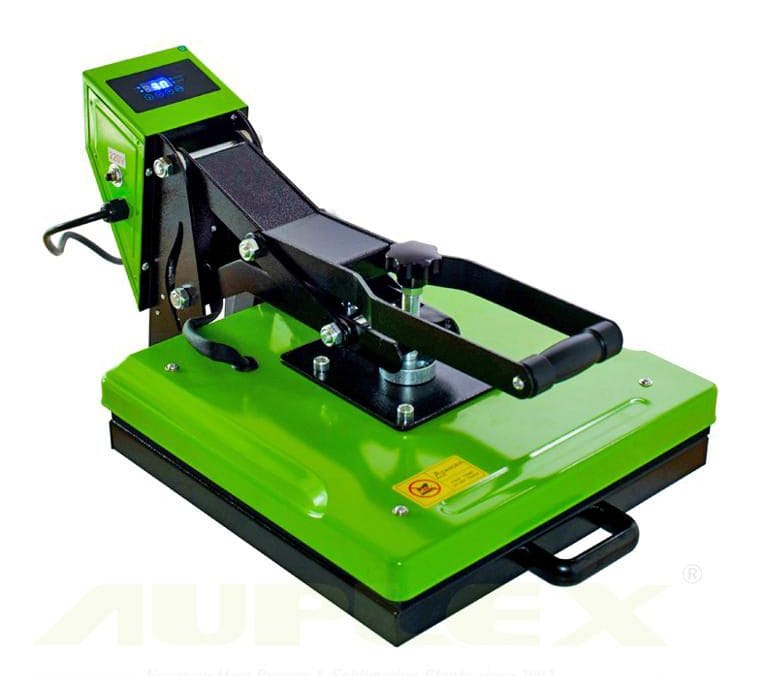

H54805 Combination DIgital Clamshell Mug Heat Press 15 x 15 inches 38 x 38 cm Right

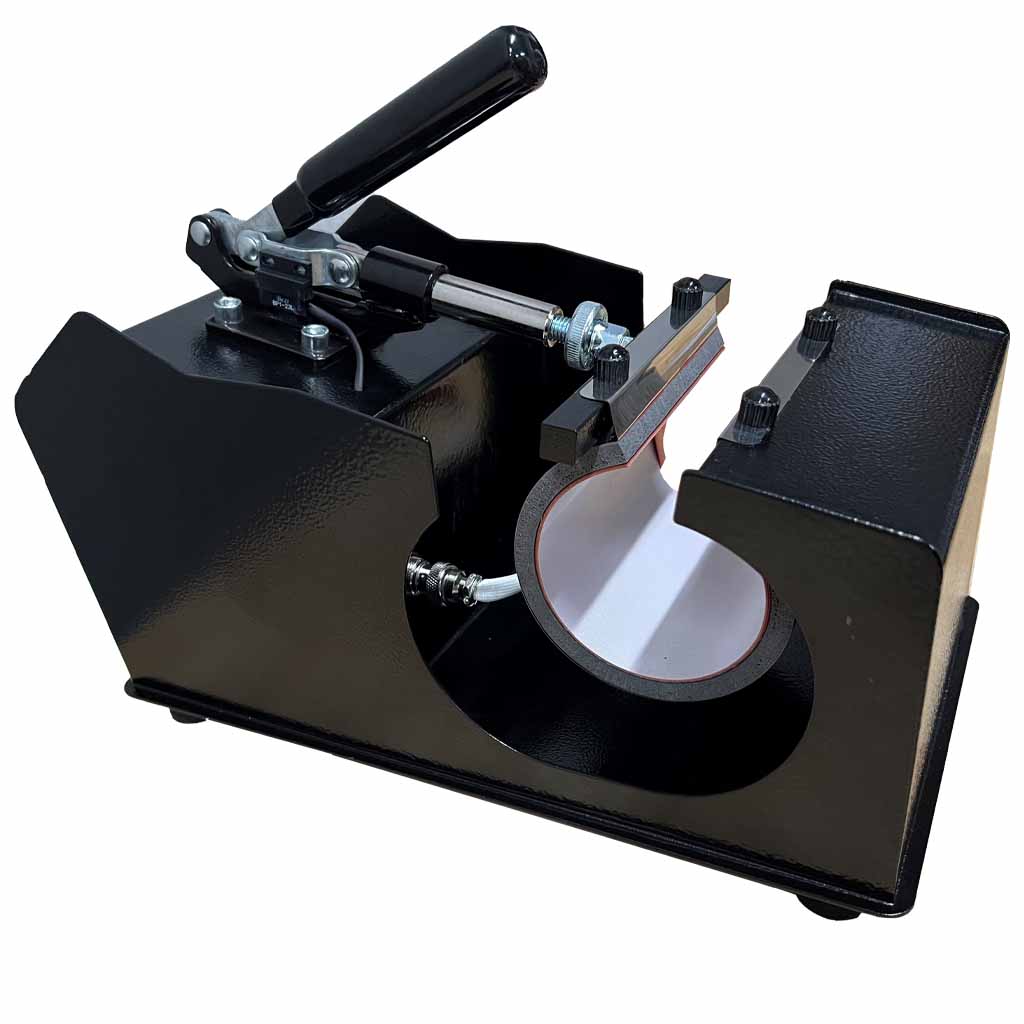

H54805 Combination Digital Clamshell Mug Heat Press 15 x 15 inches 38 x 38 cm Separate Unit

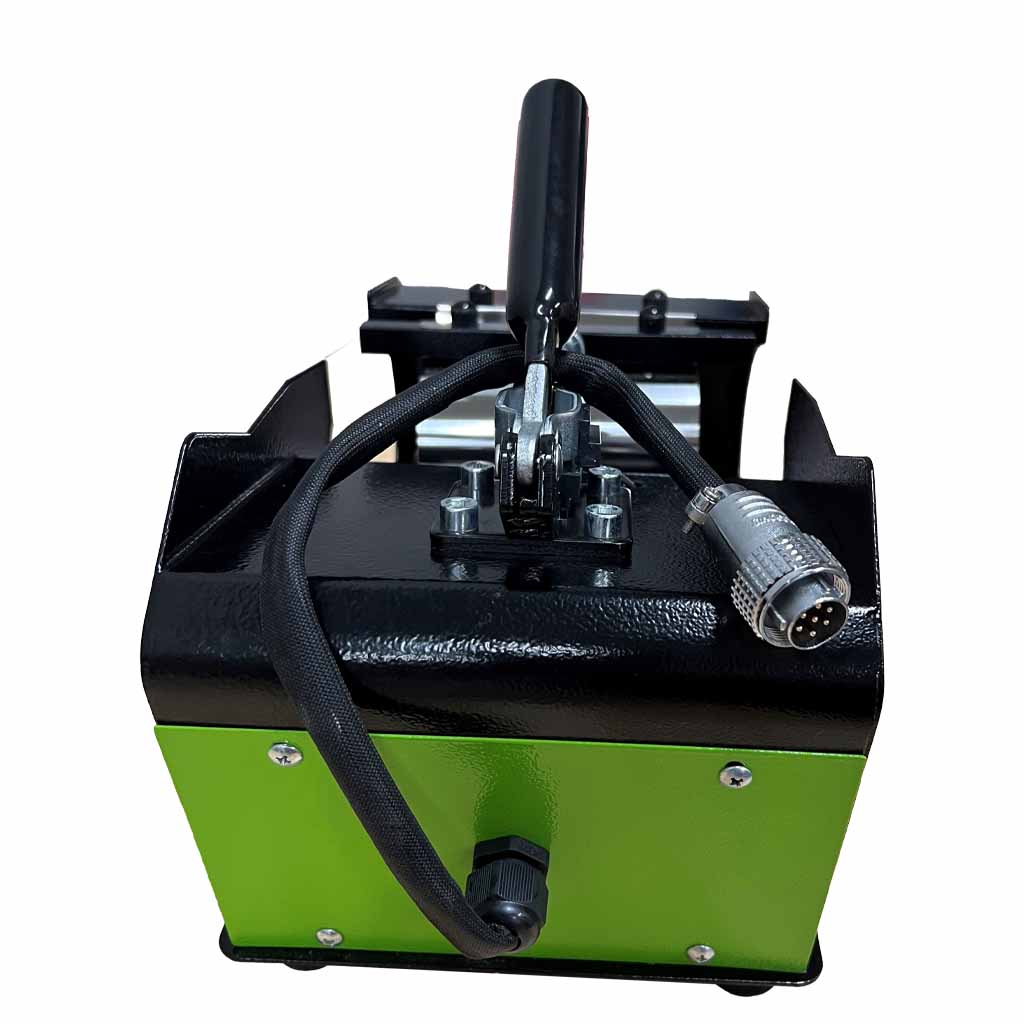

H54805 Combination Digital Clamshell Mug Heat Press 15 x 15 inches 38 x 38 cm Separate Unit Back

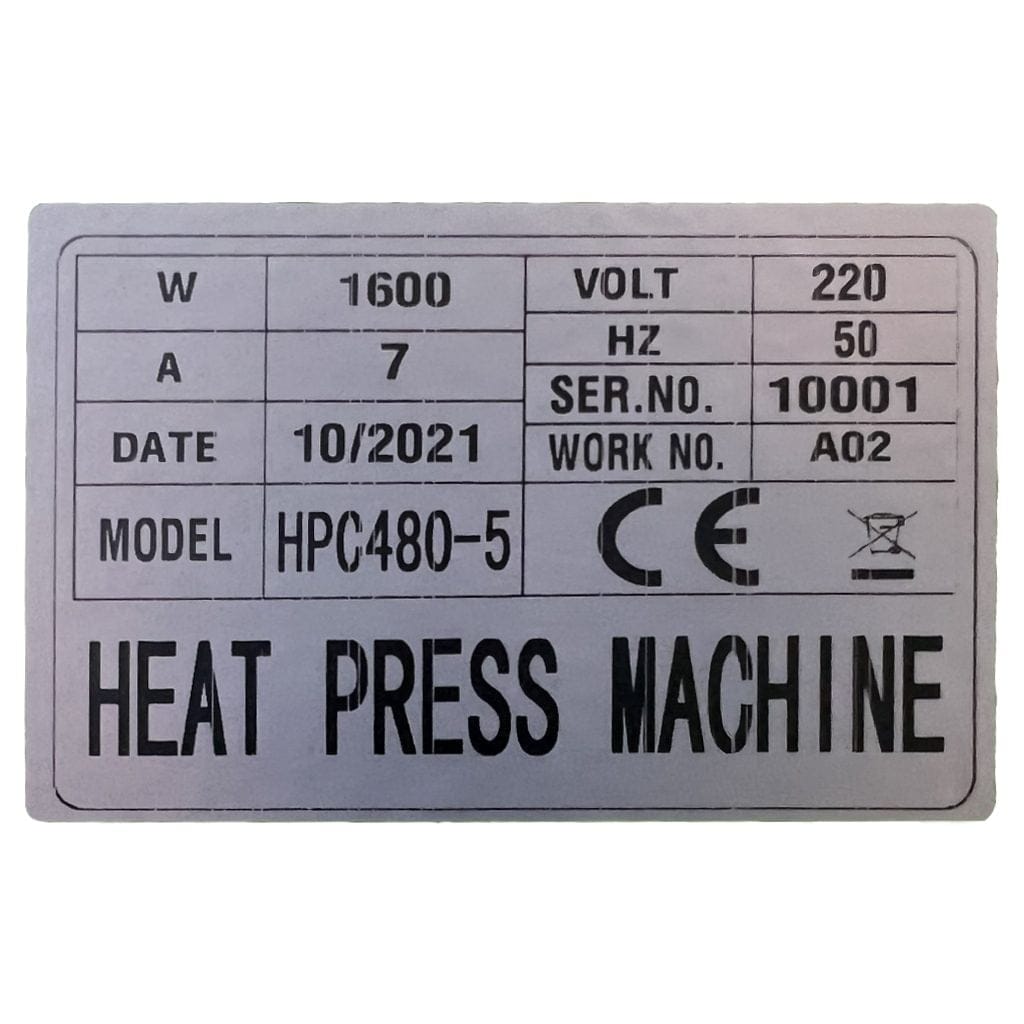

H54805 Combination Digital Clamshell Mug Heat Press 15 x 15 inches 38 x 38 cm Label

Combination Clamshell 2 in 1 Heat Press 15 x 15 Inches 38 x 38 Cm [HPC480-5]

Name: Combination Clamshell 2 in 1 Heat Press 15 x 15 Inches 38 x 38 Cm [HPC480-5]
SKU: AUMHP500105
Availability: InStock
Rating: 5.00 (2 reviews)

SKU: AUMHP500105

Rated 5.00 out of 5 based on 2 customer ratings

(2 customer reviews)

Original price was: $799.00.Current price is: $599.95.

The 38 x 38 Combo Heat Press is a Heat Press Machine for sublimation, transfer printing and compatible blank production. Key features include Combines a flat Heat Press Machine and mug press in one unit, allowing seamless switching between garments and drinkware.

1 in stock

Need more stock? Enter the quantity you need and your email address. We will notify you when enough stock is available. Notifications do not reserve stock; the first completed order secures it.

SKU: AUMHP500105 Categories: Combination Heat Presses, Heat Presses Tags: Electric Machinery, Heating Element Size 115 x 208 mm 6oz 10oz, Heating Element Size 120 x 235 mm 11oz, Heating Element Size 12oz Conical, Heating Element Size 150 x 208 mm 6oz 10oz WB, Heating Element Size 150 x 250 mm 15oz, Heating Element Size 17oz Conical

Combination Clamshell 2 in 1 Heat Press 15 x 15 Inches 38 x 38 Cm [HPC480-5] Description

📖 What to know about the 38 x 38 Combo Heat Press

Great heat press for a beginner to intermediate user.

Well constructed with a metal frame, consistent reliable result, best value for money heat presses in Australia.

Our heat press machines are designed for printing textiles, t-shirts, mouse pads, puzzles, ceramic tiles and other flat surfaces items by using the flex, flocking, transfer printing paper, sublimation, dtf etc.

Our heat press machines are covered by a 12 month return to base warranty, we will either repair or replace your heat press if required but we have less than a 2% failure rate. Items like heating belt elements for mug presses are not covered under warranty and are considered a consumable.

For user manuals and more detail Click Here

NOTICE: Packaged with foam, plastic bags and moisture absorbing satchels, please keep out of reach of children.

📋 Combination Clamshell 2 in 1 Heat Press 15 x 15 Inches 38 x 38 Cm [HPC480-5] Features

Combines a flat heat press and mug press in one unit, allowing seamless switching between garments and drinkware. ✓Clamshell opening design provides efficient operation while minimising workspace requirements. ✓15 x 15 inch (38cm x 38cm) platen is ideal for t-shirts, small garments, and everyday transfer applications. ✓Includes dedicated mug press attachment for creating customised mugs and drinkware. ✓Digital controls allow precise adjustment of temperature and pressing time for consistent results. ✓Engineered for uniform thermal distribution to achieve flawless results on every press. ✓Precision pressure system ensures optimal results across varied substrates. ✓Suitable for DTF, HTV, sublimation, and small-format transfer applications. ✓All-in-one design makes it a cost-effective solution for starting or expanding a custom printing business. ✓

📏 Combination Clamshell 2 in 1 Heat Press 15 x 15 Inches 38 x 38 Cm [HPC480-5] Dimensions

Shipping Dimensions

Shipping Length	80.00 Cm (+/- 5%)
Shipping Width	46.00 Cm (+/- 5%)
Shipping Height	40.00 Cm (+/- 5%)
Shipping Weight	22.00 Kg (+/- 5%)

📋 Combination Clamshell 2 in 1 Heat Press 15 x 15 Inches 38 x 38 Cm [HPC480-5] Includes

1 x 38 x 38 Combo Heat Press ✓1 x Power Cord ✓1 x Press Pad ✓

Chained Products with this Item:

In stockSave 25%
Combination Clamshell Press 2 in 1 Mug Press Only [HPC480-5]
( × 1 )

📋 Combination Clamshell 2 in 1 Heat Press 15 x 15 Inches 38 x 38 Cm [HPC480-5] Specifications

🎨 Colours

Primary	Green
Secondary	Black
Additional	Silver
Additional	Red

🧱 Materials

Primary	Metal
Secondary	Alloy
Additional	Electrical Components
Additional	Foam
Additional	Rubber

📄 Certifications and Compliance

Certification 1	CE
Certification 2	EMC
Certification 3	LVD
Certification 4	ROHS
Certification 5	UL
Certification 6	TUVV

🔌 Electrical Specifications

Plug Type	10A
Volts	240
Hertz	50hz

⚙️ Machine Specifications

Platen Size	38 x 38 cm (15 x 15")
Temperature Range	0-400°C
Time Range	0-999 Seconds

👤 Age and Usage

Age Range	Adult
Adult Product	No

📋 Combination Clamshell 2 in 1 Heat Press 15 x 15 Inches 38 x 38 Cm [HPC480-5] Design

Heavy-Duty 5mm Steel Frame Construction

Built using thick, high-grade steel for maximum structural integrity. This provides exceptional rigidity, reduces flex under pressure, and ensures long-term durability in commercial environments.

All-Alloy Heat Plate Design

Manufactured from solid alloy rather than cast iron or mixed metals, allowing for superior heat conductivity, faster heat recovery, and more consistent temperature distribution across the entire platen.

Teflon-Coated Heat Plate Surface

Premium non-stick Teflon coating prevents scorching, reduces residue build-up, and protects garments and substrates while making cleaning fast and easy.

Uniform Pressure & Heat Distribution

The rigid frame combined with the alloy heat plate delivers even pressure and consistent heat from edge to edge, critical for professional sublimation, DTF, HTV, and transfer work.

Thermal Stability & Heat Retention

The alloy platen maintains stable temperatures with minimal fluctuation, improving transfer accuracy and reducing re-pressing or product waste.

📘 Product Instructions

Prepare Your Workspace and Materials

Set up your heat press on a stable, heat-resistant surface in a well-ventilated area. Gather your materials: the substrate (e.g., t-shirt or mug), transfer paper with your printed design, heat-resistant tape, and protective sheets like Teflon or butcher paper. Ensure your design is mirrored if needed for sublimation.

Set Temperature, Time, and Pressure

Plug in your heat press and turn it on. Refer to the product's recommended settings (found in our user manuals or product descriptions on printgeek.com.au). Typical ranges:Temperature: 180–200°C (356–392°F) for most sublimation items.Time: 30–60 seconds for fabrics; 180–240 seconds for mugs.Pressure: Medium to firm, depending on the material—adjust the knob or lever accordingly.Allow the press to preheat fully (usually 5–10 minutes) until it reaches the set temperature.

Position and Press

Place the substrate on the lower platen. Align your transfer paper face down on the item and secure with tape. Cover with a protective sheet to prevent scorching. Close the press firmly and start the timer. Apply even pressure—avoid opening mid-cycle.

Cool and Finish

Once the timer beeps, carefully lift the press (use heat-resistant gloves). Peel the transfer paper while hot for best results (or cool for certain materials). Let the item cool completely before handling or packaging.

Safety Tips

Always wear protective gloves and avoid touching hot surfaces.Unplug when not in use.For detailed settings per product, check our heat press user manuals at printgeek.com.au/heat-press-user-manuals.If you're new, practice on scraps to perfect your technique.For high-quality heat presses and supplies, browse our collection at Print Geek Australia. Questions? Contact our team for expert advice!

🎬 Videos about Combination Clamshell 2 in 1 Heat Press 15 x 15 Inches 38 x 38 Cm [HPC480-5]

▶️ No Current Video

No current videos are available for this product.

▶ Visit our YouTube Channel

Subscribe to be notified of new videos as they are released.

🛡️ Warranty & Returns

12 month return to base warranty, please see link for more information.

Warranty length: 12 months

View Return to Base Warranty

Warranty coverage is subject to product condition, correct use, manufacturer terms and the warranty conditions listed on the linked page.

2 reviews for Combination Clamshell 2 in 1 Heat Press 15 x 15 Inches 38 x 38 Cm [HPC480-5]

Rated 5 out of 5
melissa fuda (verified owner) – 28/04/2022
Verified review - view original
absolutely love my heat press, great strong quality not flimsy and so easy to use. I will purchase more from this company
Rated 5 out of 5
Michelle (verified owner) – 04/12/2022
Verified review - view original
Love it – still getting the hang of it as the instructions were a bit sketchy but so far so good.
