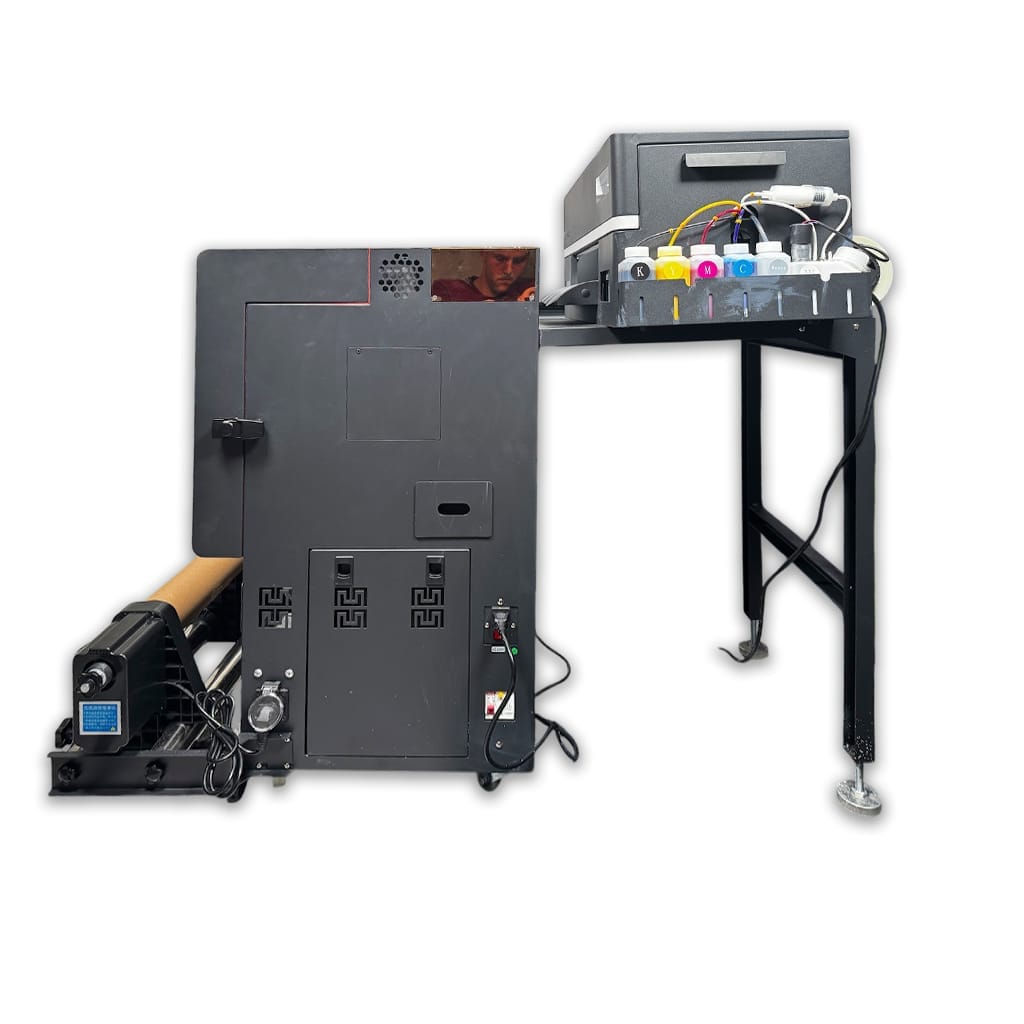

Vertical Shaker Side Angle Whole System with Printer

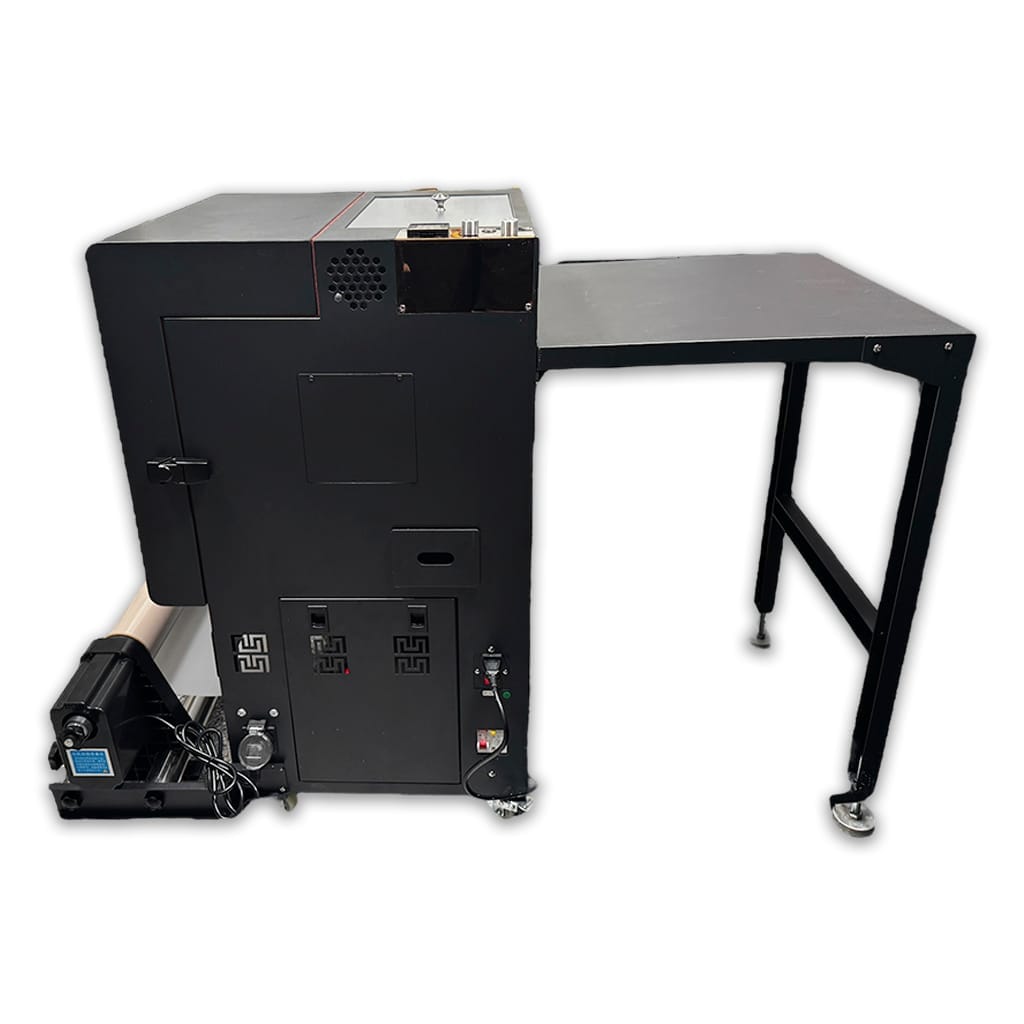

Vertical Shaker Side Shot Whole System No Printer

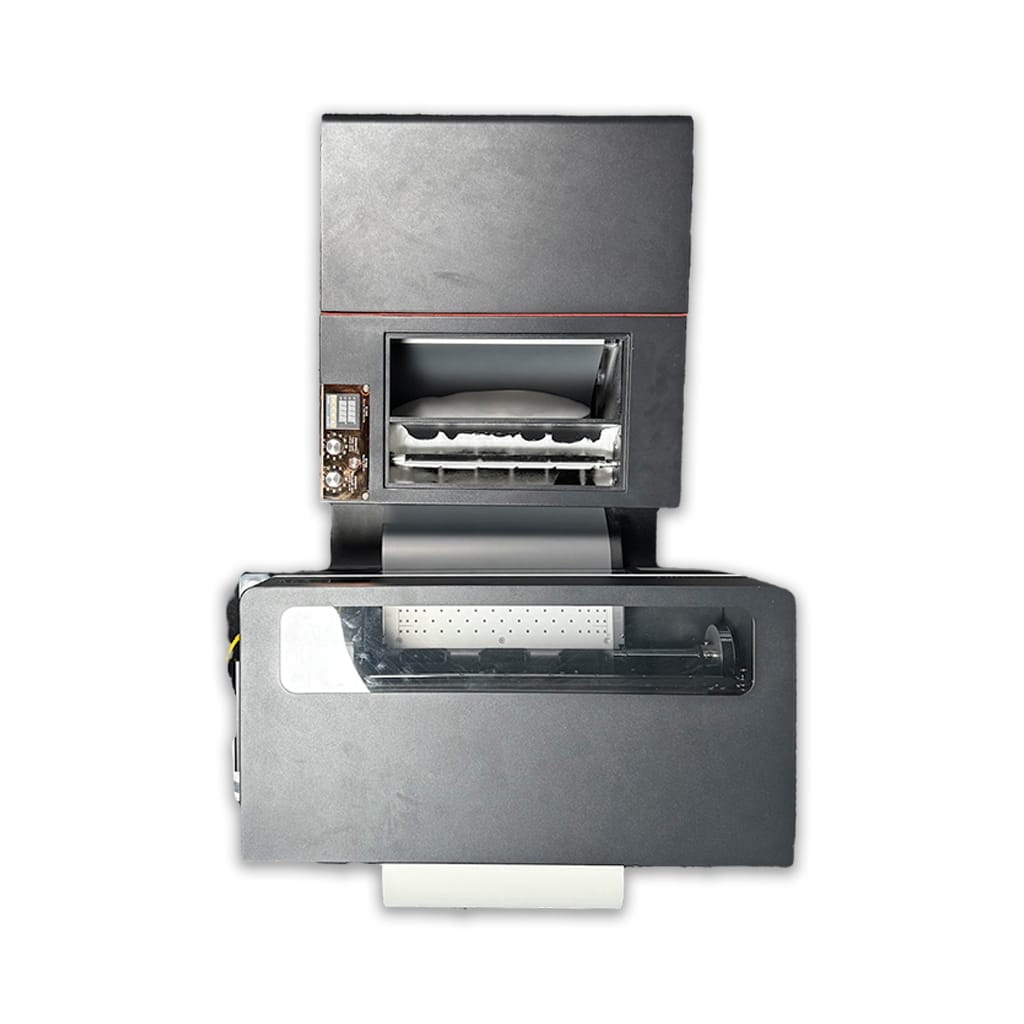

Vertical Shaker Birdseye View With Printer Oven Closed Power Shaker

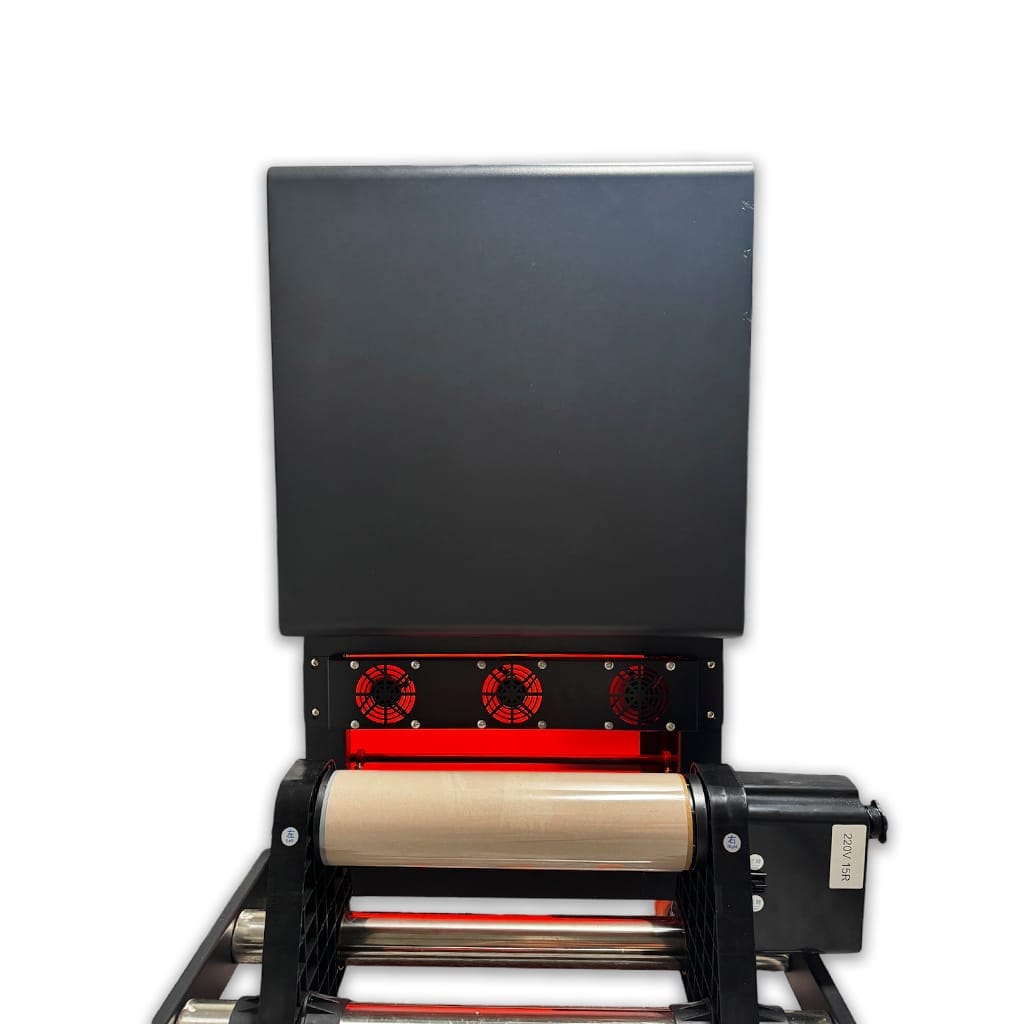

Vertical Shaker Oven End with Takeup Roller

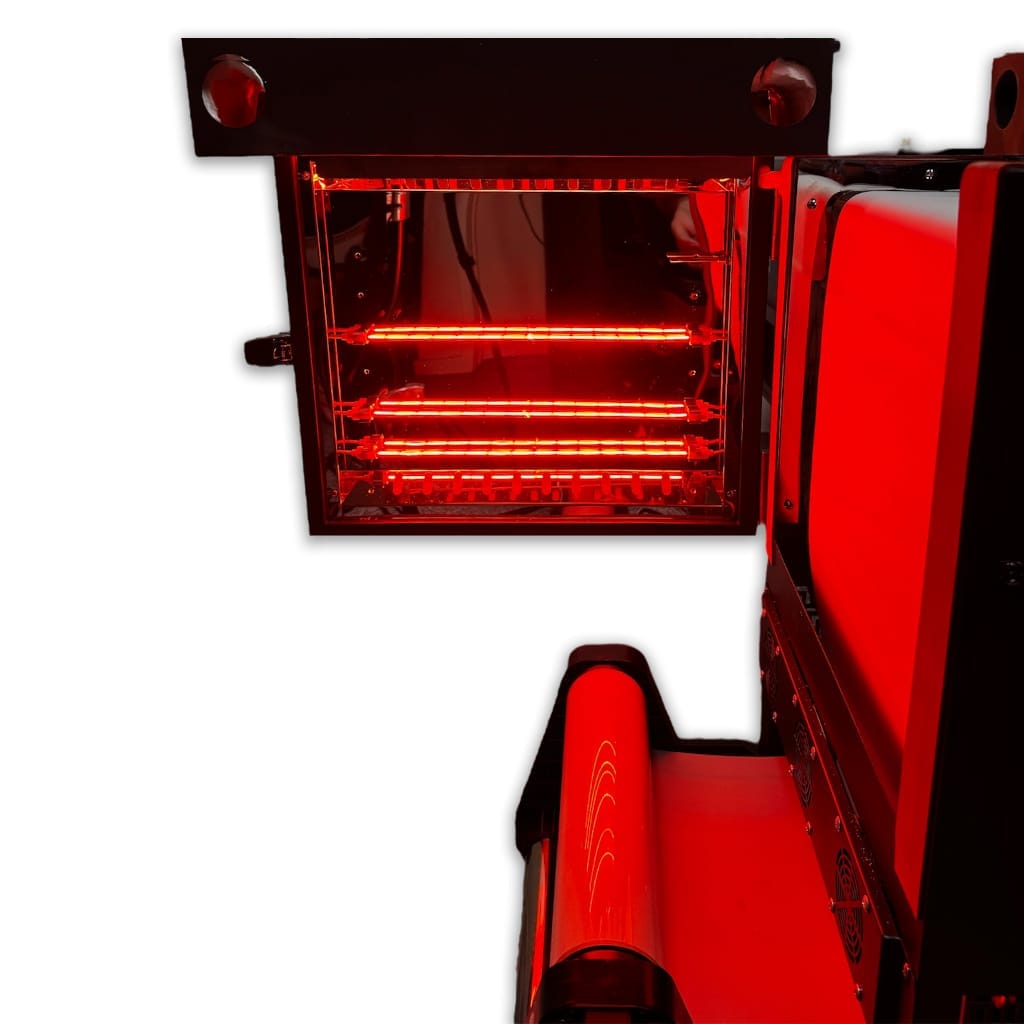

Vertical Shaker Side Angle Whole System with Printer Oven On

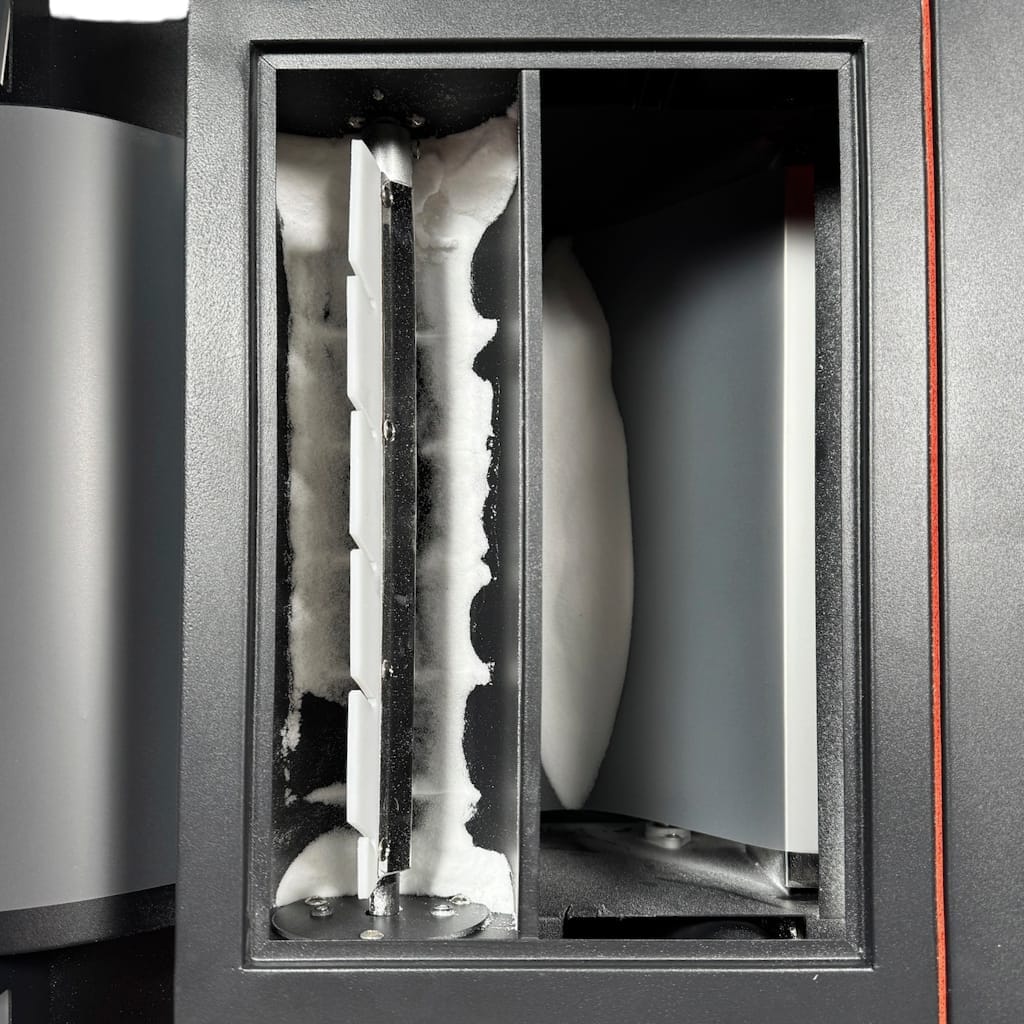

Vertical Shaker Powder Bay Inside Shaker and Stiriing

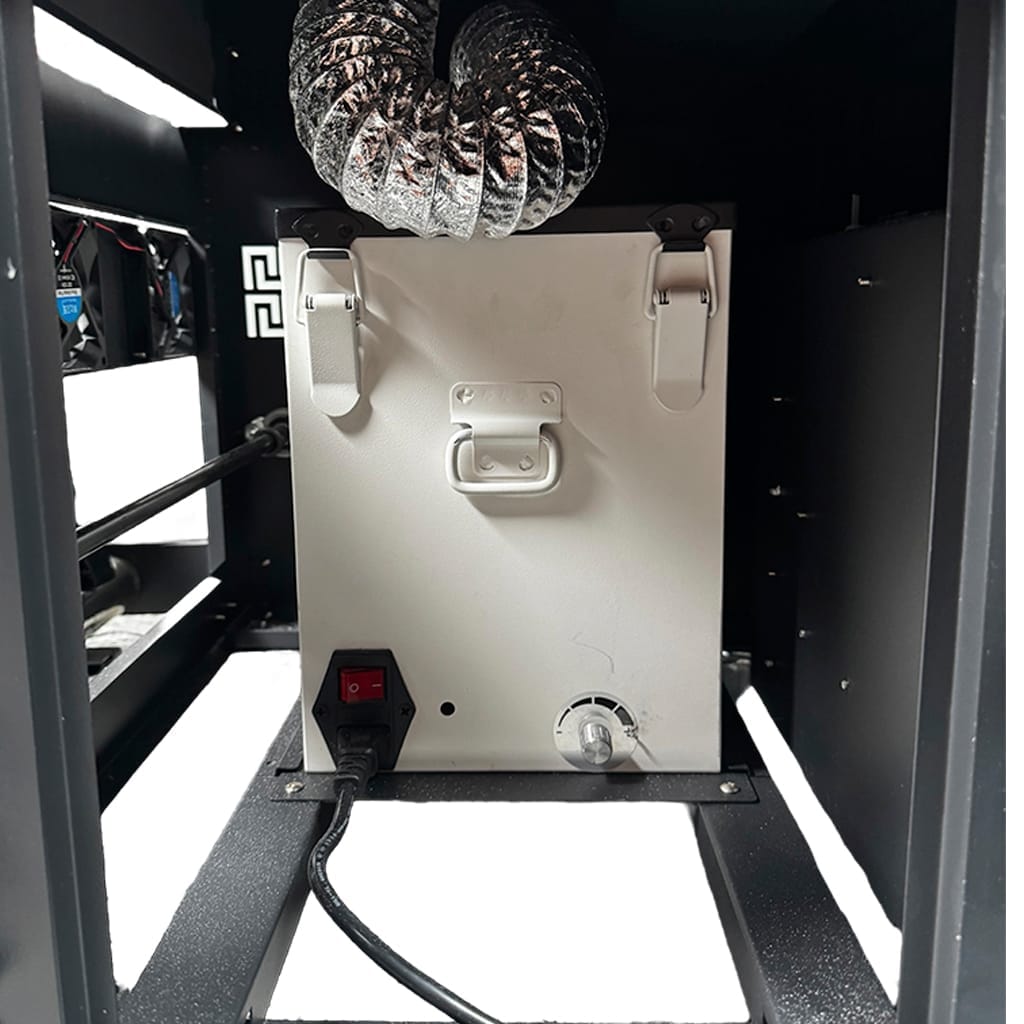

Vertical Shaker Built In Air Purifier
Photoroom

DTF Vertical Shaker Oven

SKU: AUMDSO00102

(1 customer review)

Original price was: $1,495.00.Current price is: $1,295.00.

The DTF Vertical Shaker Oven is a heat press for sublimation, transfer printing and compatible blank production. Key features include Vertical configuration reduces footprint while maintaining full powdering and curing capability.

5 in stock (can be backordered)

SKU: AUMDSO00102 Categories: , , , , Tags: , ,

DTF Vertical Shaker Oven Description

📖 What to know about the DTF Vertical Shaker Oven

This digital powder shaker/dryer is a strong industrial built oven and shaker is designed for large run curing of Direct of Film printing. Our team recommends this oven to be paired with our Iris Pro or Iris Super Pro Printers.

This oven is compatible with printers up to 10 meters per hour. Using A3+ (340mm) film. Complete with an easy access powder tray to recycle powder back into powder dispenser and three heat lamps designed to cure prints effectively at all speeds. The curing oven is built on hinges to allow easy cleaning, maintenance and setup.

The vertical shaker oven is optimised with an automatic variable speed sensor that will increase and decrease the powder shaker and powder dispenser speeds depending on the total powder in the shaker. This will prolong the time required by the shaker during printing to allow even more automation.

📋 DTF Vertical Shaker Oven Features

Vertical configuration reduces footprint while maintaining full powdering and curing capability. ✓Automatically applies, shakes, and recycles adhesive powder for consistent coverage and reduced waste. ✓Precision-controlled curing chamber delivers uniform heat distribution for professional-grade bonding. ✓Automatic variable speed system adjusts powder shaking and feeding based on workload. ✓Includes integrated air purification to reduce fumes and maintain a cleaner workspace.Includes integrated air purification to reduce fumes and maintain a cleaner workspace. ✓Designed for A3+ film widths, making it ideal for compact and mid-level DTF printer setups. ✓Fully integrated roll-to-roll workflow ensures uninterrupted production and maximum efficiency. ✓Hinged oven design allows easy access for cleaning, setup, and maintenance. ✓

📏 DTF Vertical Shaker Oven Dimensions

Product Dimensions

Product Length126.00 Cm (+/- 5%)
Product Width61.00 Cm (+/- 5%)
Product Height91.00 Cm (+/- 5%)
Product Weight55.00 Kg (+/- 5%)

Shipping Dimensions

Shipping Length66.00 Cm (+/- 5%)
Shipping Width58.00 Cm (+/- 5%)
Shipping Height111.00 Cm (+/- 5%)
Shipping Weight73.00 Kg (+/- 5%)

Machine Footprint

Minimum Footprint Length77.00 Cm (+/- 5%)
Minimum Footprint Width61.00 Cm (+/- 5%)
Minimum Footprint Height91.00 Cm (+/- 5%)
Maximum Footprint Length148.00 Cm (+/- 5%)
Maximum Footprint Width107.00 Cm (+/- 5%)
Maximum Footprint Height91.00 Cm (+/- 5%)

📋 DTF Vertical Shaker Oven Includes

1 X Small Air Purifier ✓

📋 DTF Vertical Shaker Oven Specifications

🎨 Colours

PrimaryBlack
SecondarySilver

🧱 Materials

PrimaryMetal
SecondaryGlass
AdditionalElectrical Components
AdditionalSteel
AdditionalSilicone

🔌 Electrical Specifications

Plug Type10A
Amps6.5
Watts1500
Volts230
Hertz50hz

👤 Age and Usage

Age RangeAdult
Adult ProductNo

📋 DTF Vertical Shaker Oven Design

📘 Product Instructions

Usage

Please refer to operation manual.

🎬 Videos about DTF Vertical Shaker Oven

▶️ No Current Video

No current videos are available for this product.

▶ Visit our YouTube Channel

Subscribe to be notified of new videos as they are released.

🛡️ Warranty & Returns

Please see the link below in relation to the warranty for this product.

Warranty length: 12 months

View Print Geek Machinery Warranty

Warranty coverage is subject to product condition, correct use, manufacturer terms and the warranty conditions listed on the linked page.
