Epson SC F2260 Direct to Garment DTG DTF Printer Description
📖 What to know about the F2260 DTF Printer
Epson has grown to become a world leader in digital fabric production. The SureColor F2260 is the third generation of our popular desktop direct-to-garment (DTG) range. It combines outstanding image quality with an enhanced production speed, a reduced print cost, and support for the latest direct-to-film (DTFilm) techniques. The printer uses a new ink that enables improved imaging on a range of material. Prints can be made directly onto fabric or indirectly via film transfer. The printer ships as standard in a 5-colour configuration with CYMK + dual white ink for maximum production flexibility.
The SC-F2260 incorporates refined ergonomics and auto head-height adjustment for easier loading and enhanced productivity. It uses new Epson UltraChrome® DG2 ink and features our latest Precision Core® MicroTFP printhead. The head provides superior operational durability while enabling better image quality and faster speed.
The SC-F2260 was designed for medium-volume commercial production and in-store garment customisation. Multiple machines can be used together to enable higher volume production. It is a third-generation mechanism with proven performance and refined operation.

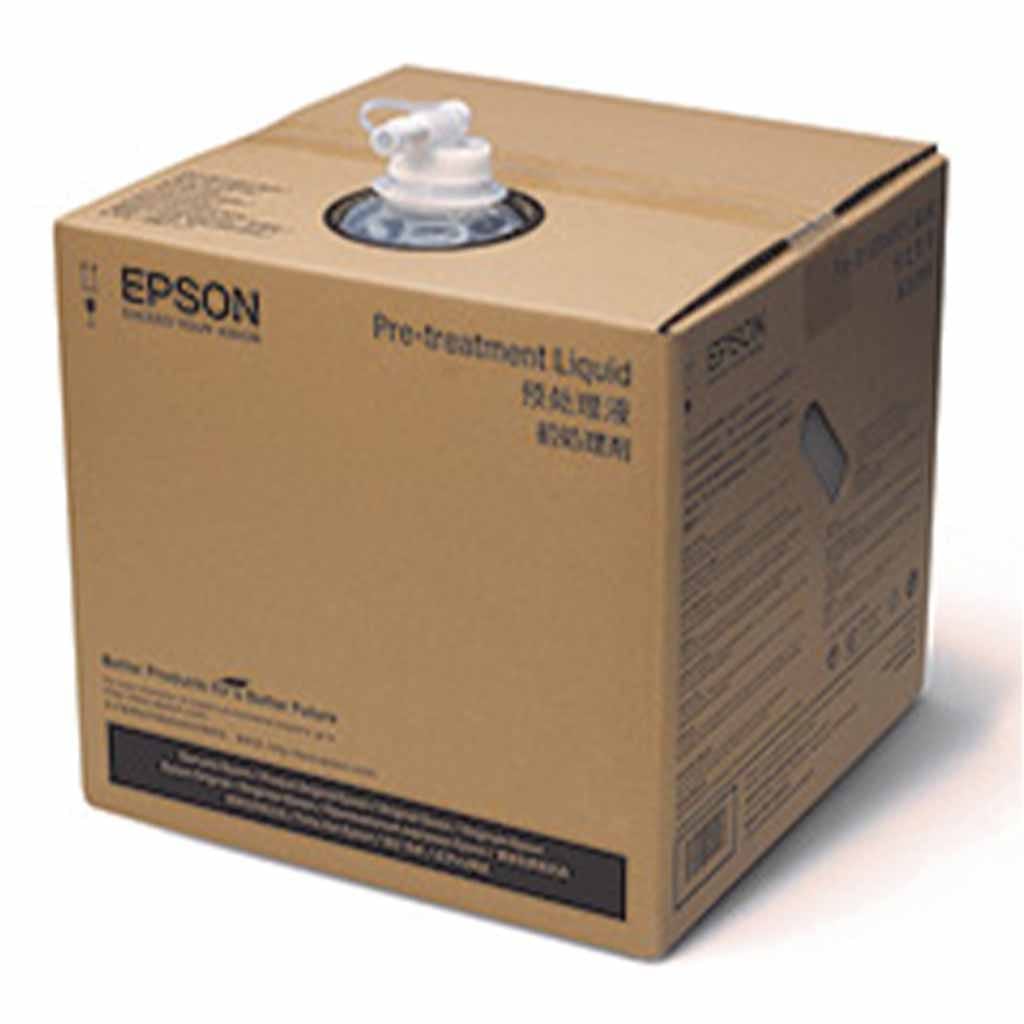

Upgraded Epson UltraChrome DG2 ink has been designed to address the latest DTG and DTFilm workflow techniques. When used in conjunction with appropriate pre-treat solution, film and powders, it adheres to a wider range of fabrics and produces images with less bleed and superior durability.
Direct-to-garment printing replaces the complex, messy and time-consuming process of traditional screen printing with a faster, more flexible digital solution.

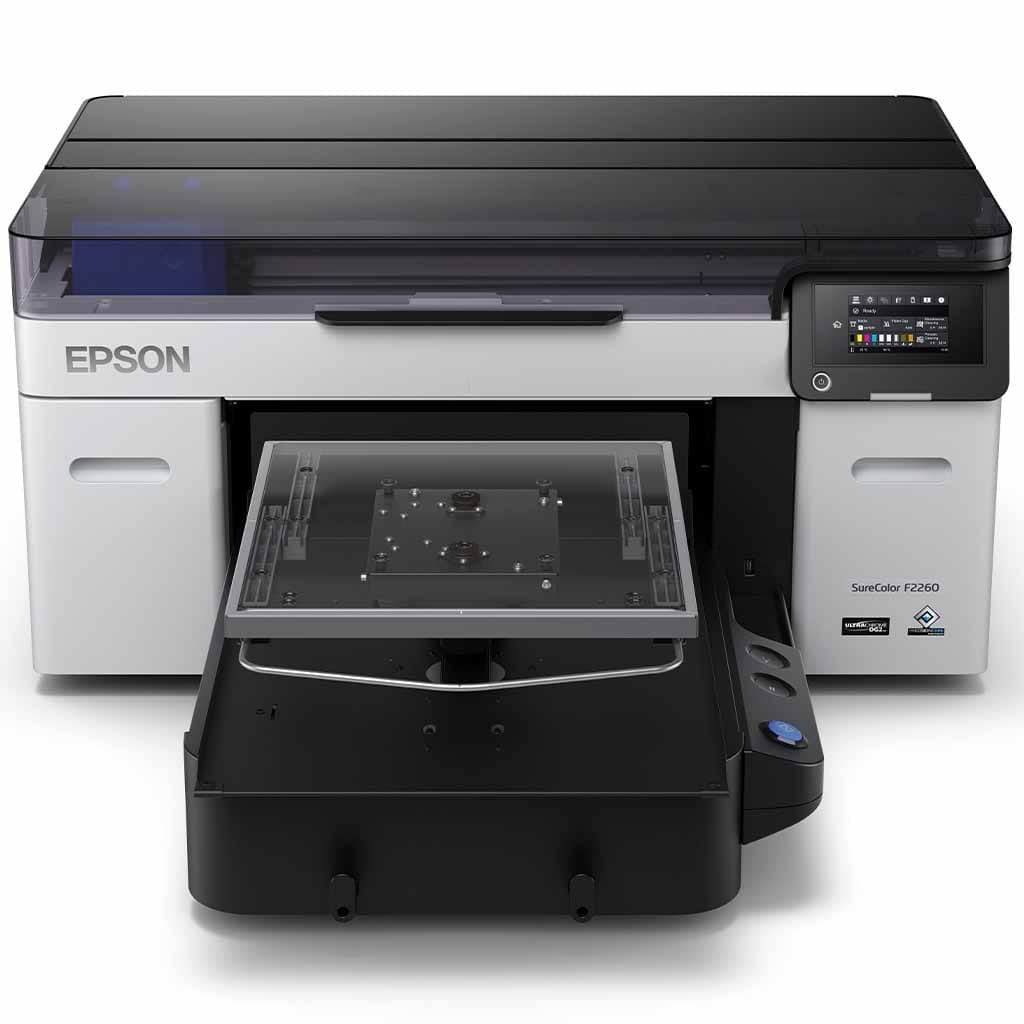

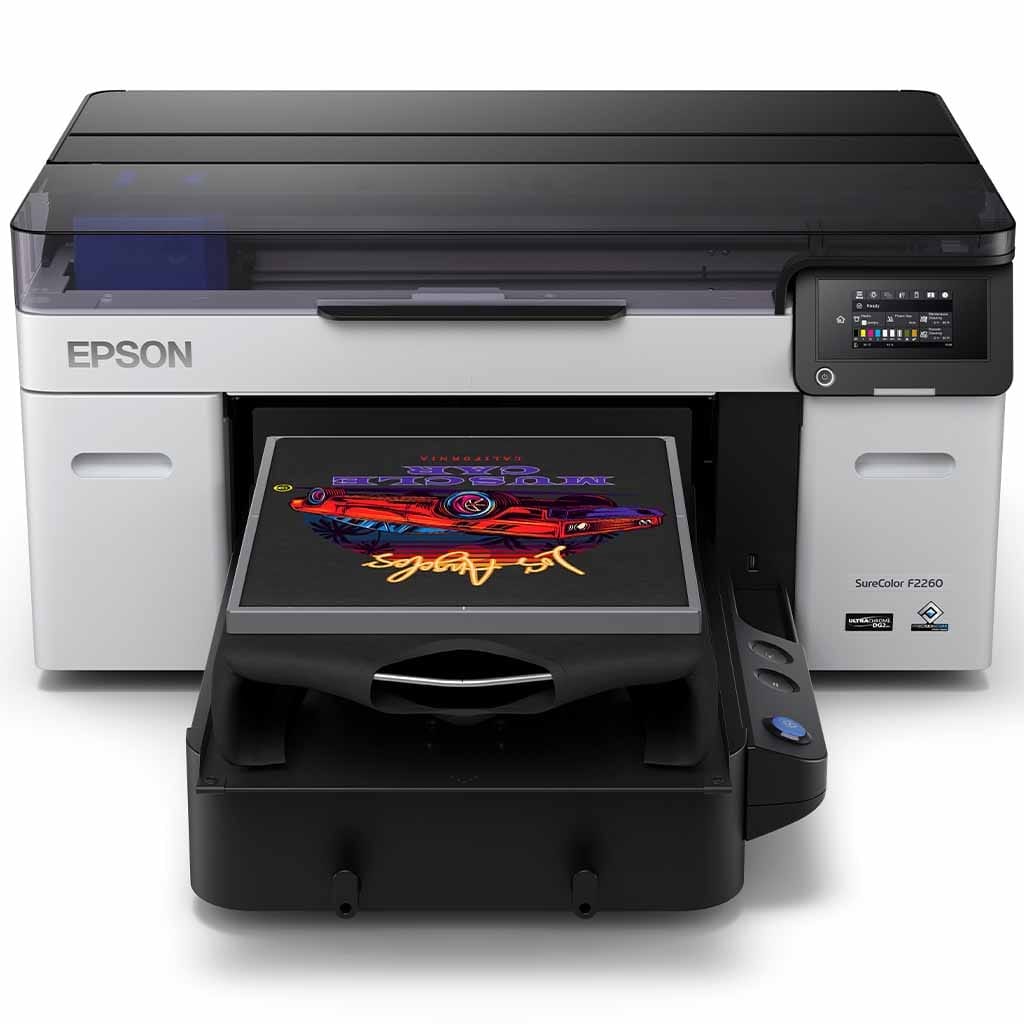

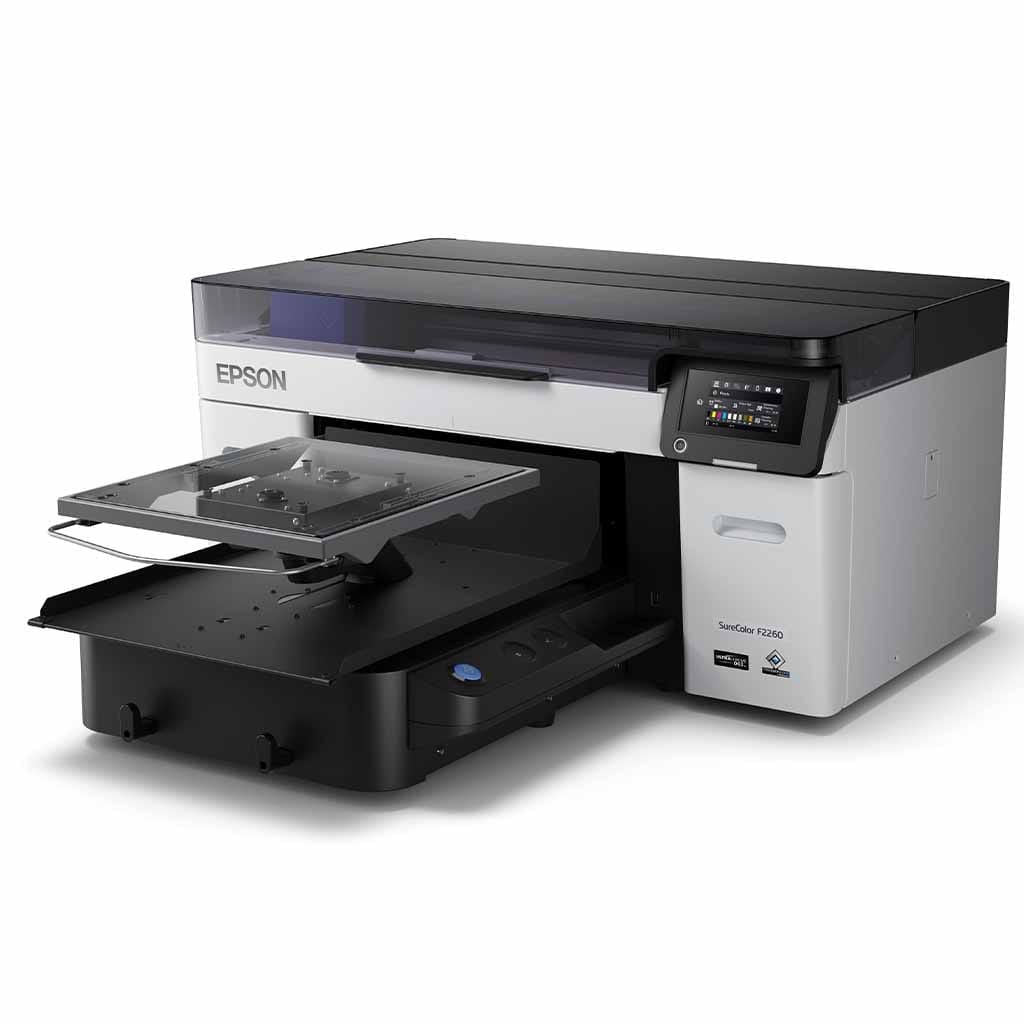

The SureColor F2260 features a revised enclosure and a 4.3-inch touch panel display. It ships in a flexible 5-colour configuration and can optionally be set up for high-speed 4-colour production.

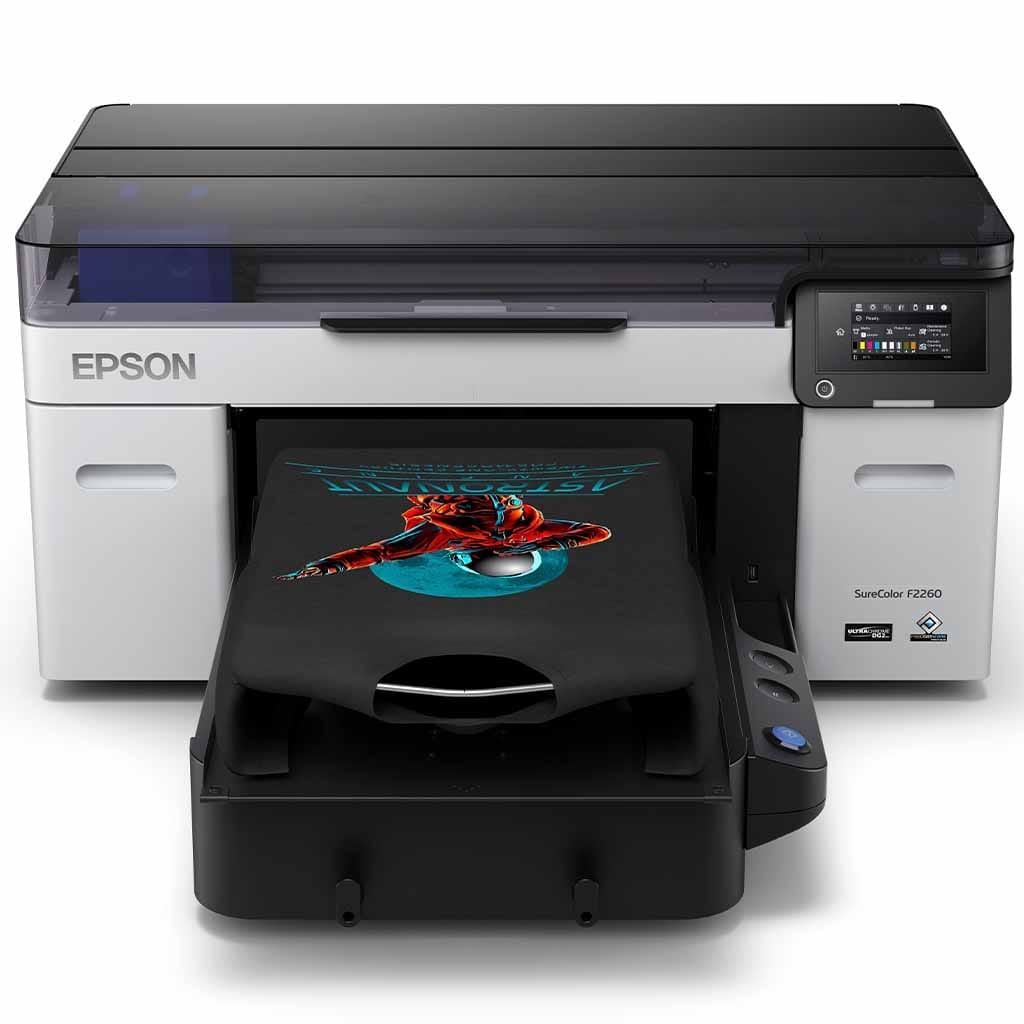

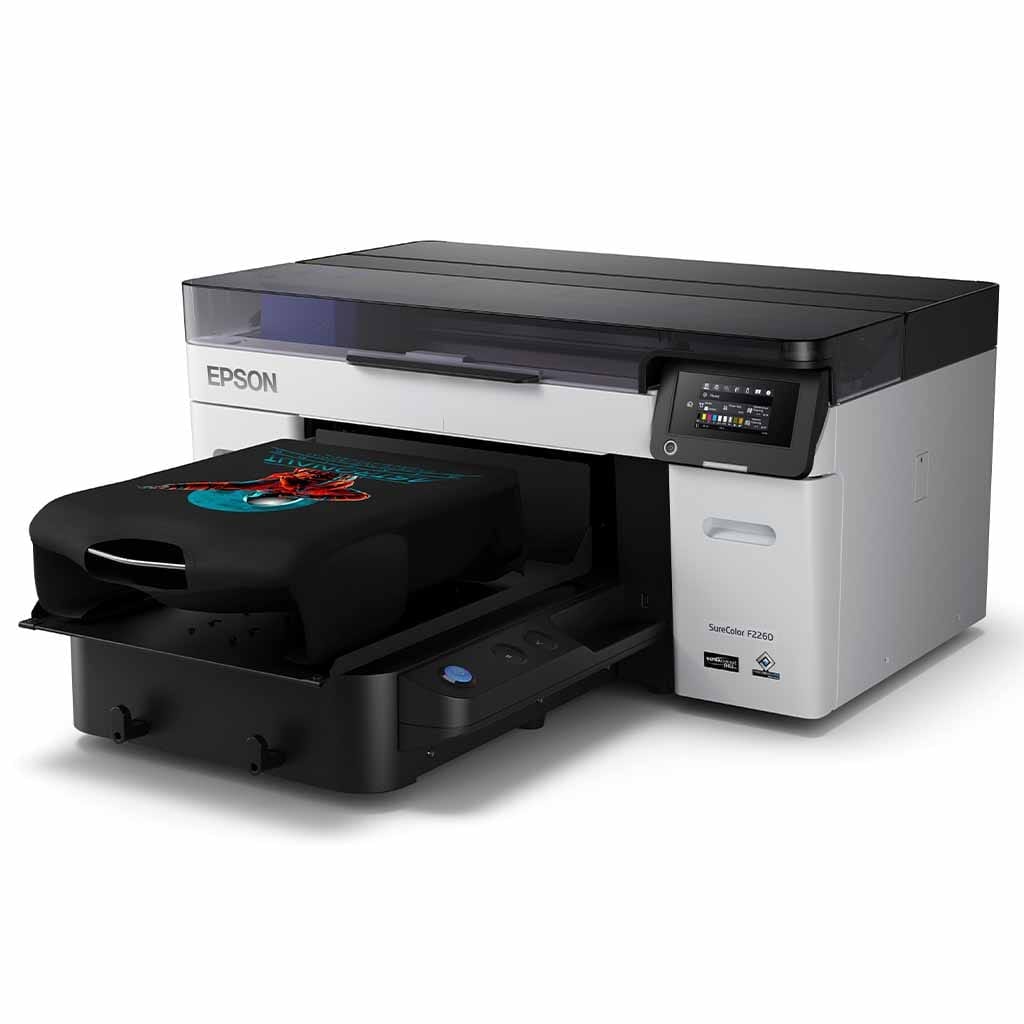

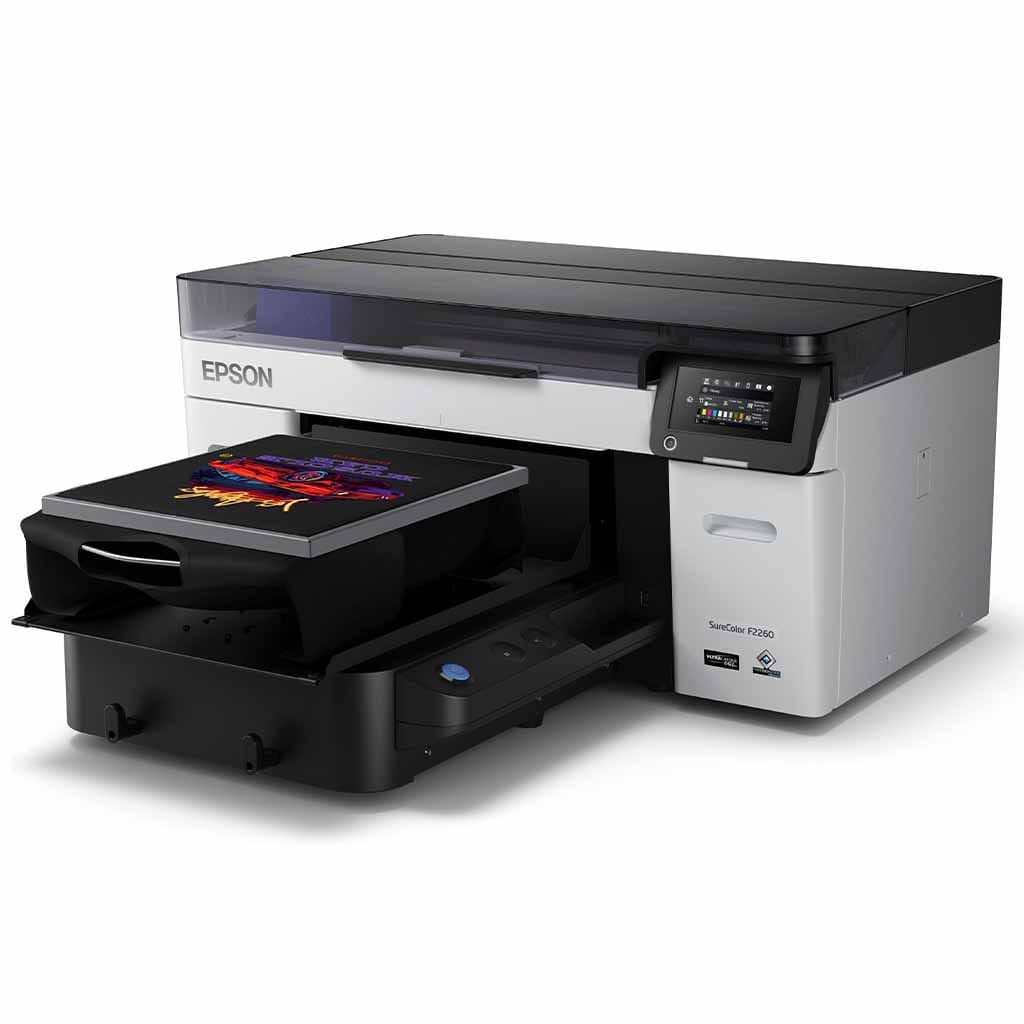

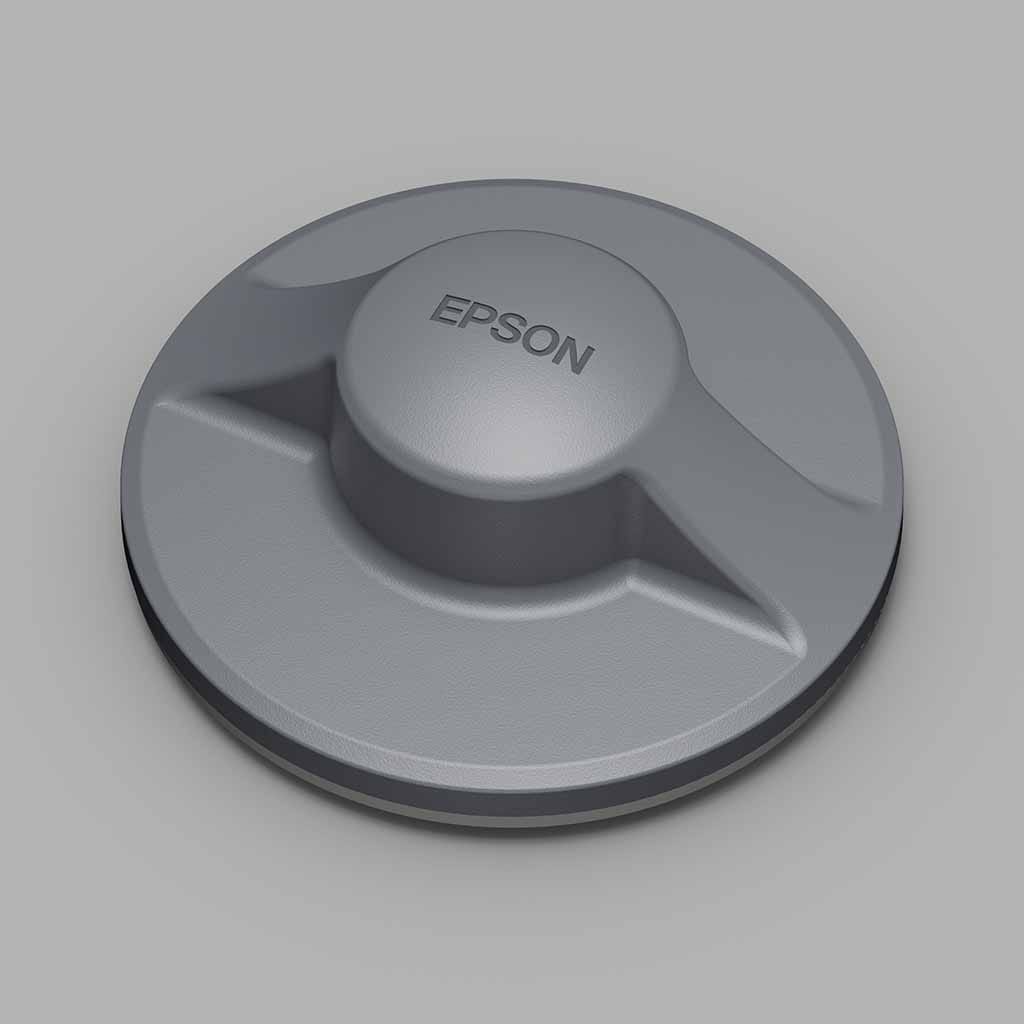

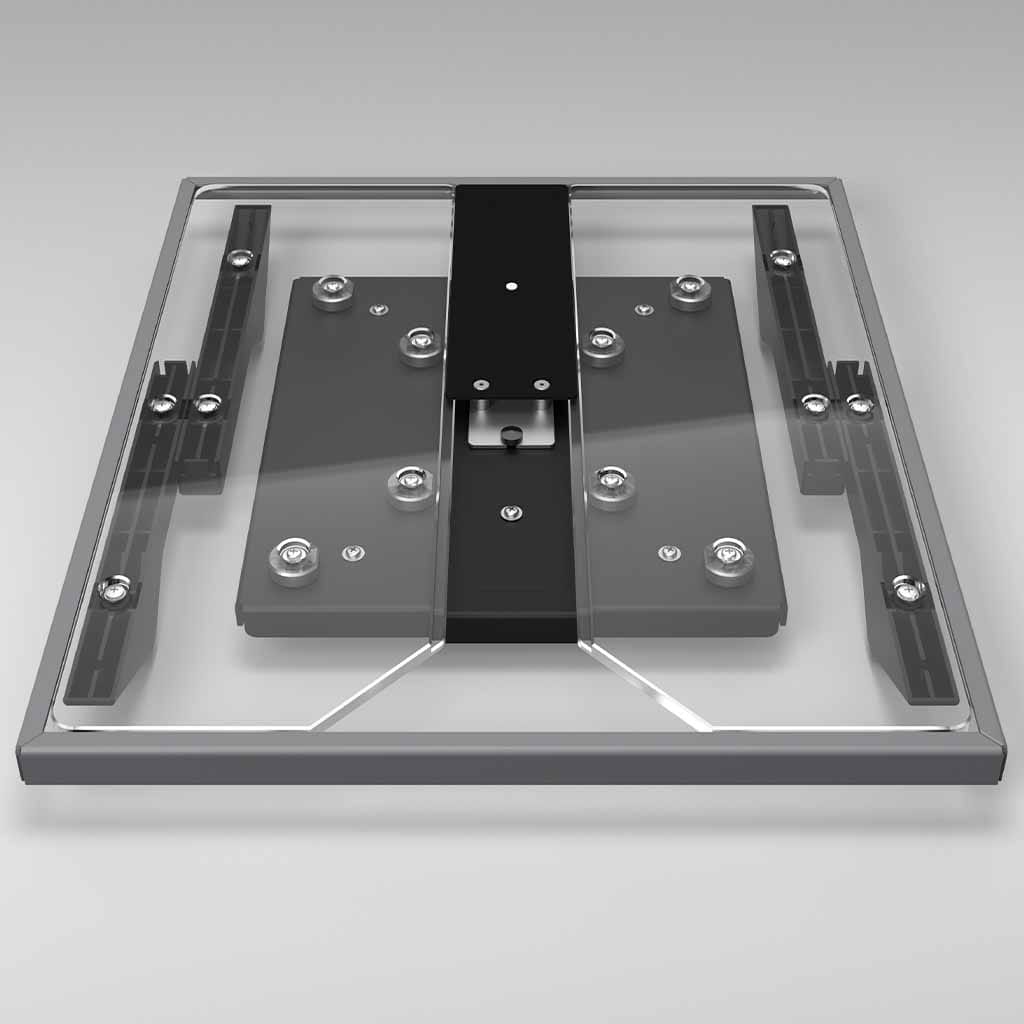

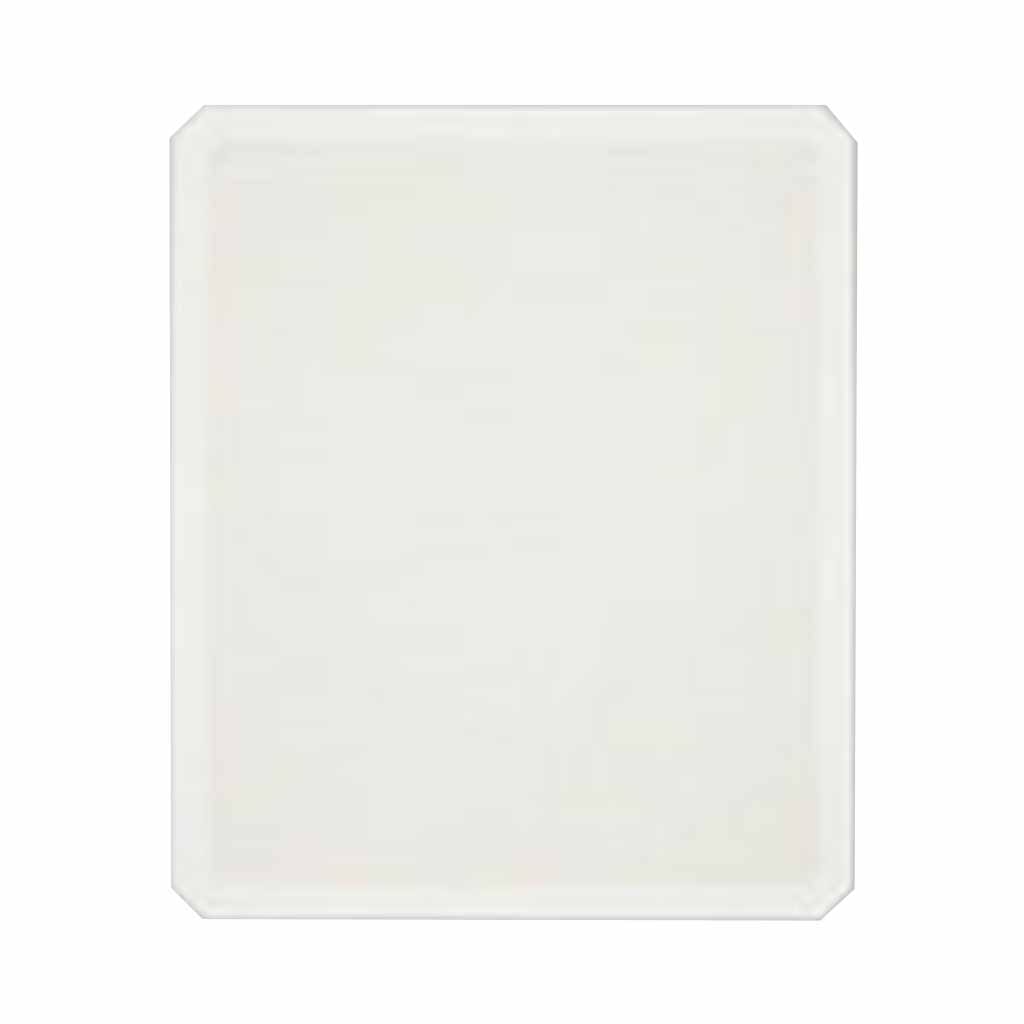

The SC-F2260 supports premium frame-based output and rapid frame-less output with user-replaceable grip pads. The printer ships with upgraded Epson Garment Creator 2 software and connects with Epson Cloud Solution PORT.
Enhanced productivity – faster print speeds and improved ergonomics.
Enhanced print quality – second generation DG2 ink and MicroTFP head technology.
Enhanced reliability – comprehensive warranty with service cover extendable up to five years.
| DIRECT TO GARMENT – DIRECT TO FILM PRINTER SPECIFICATIONS | |
|---|---|
| PRODUCT NAME | SureColor F2260 |
| SIZE | |
|---|---|
| Max print area | 406 x 508 mm (using optional large platen) |
| Form factor | Desktop |
| PRINT TECHNOLOGY | |
|---|---|
| Printhead | 1.33" Precision Core® MicroTFP with VSDT |
| Print modes | Uni and bi-directional |
| Configuration | 400 nozzles x 8 lines |
| Max resolution | 1200 x 1200 dpi |
| Minimum ink droplet size | 12.8 pl |
| Features | Fan-less enclosure, auto head wiping, self-washing capping system |
| INK SYSTEM | |
|---|---|
| Ink family | Epson UltraChrome® DG2 |
| Ink technology | Direct-to-garment / Direct-to-film |
| Ink formulation | All-pigment |

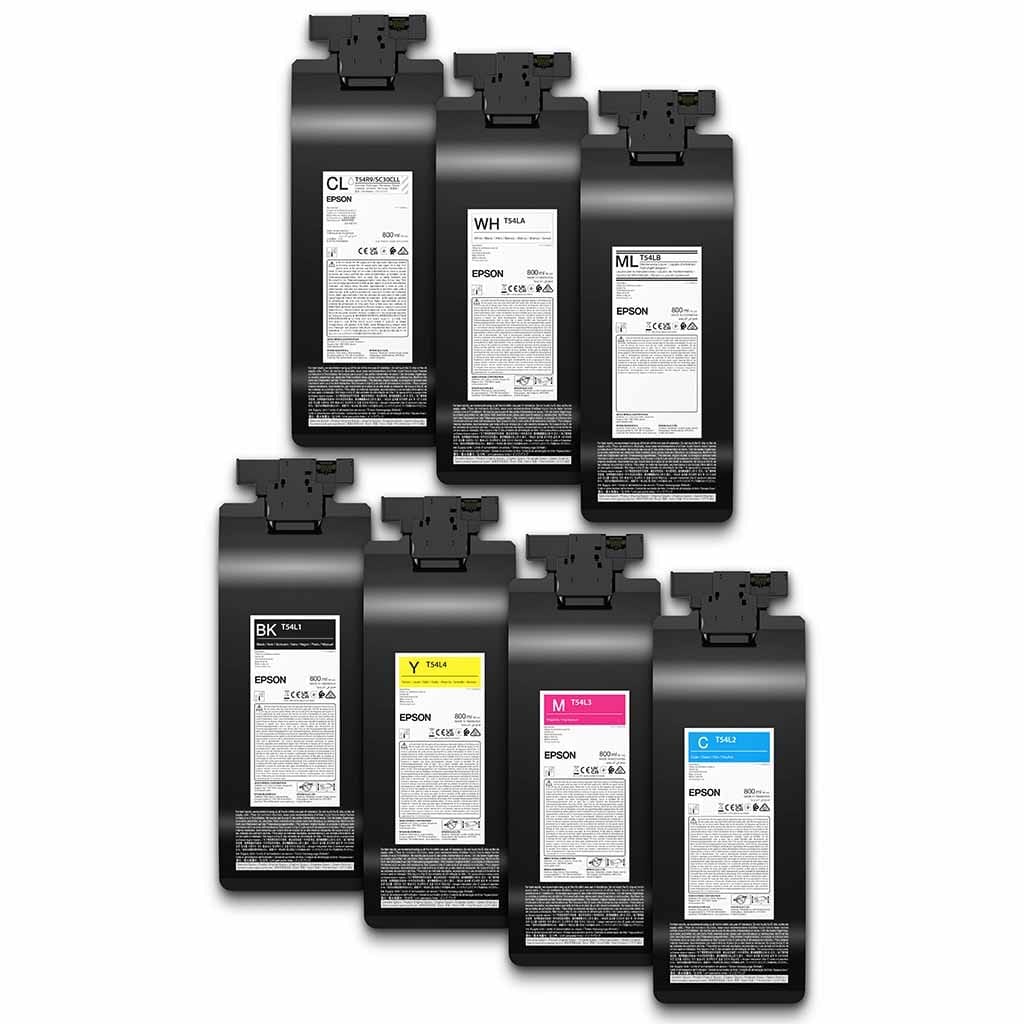

| Loading | Pouch based |
| Capacity | 6 × 800 ml ink, 1 × 800 ml maintenance liquid |
| PERFORMANCE | |
|---|---|
| Standard configuration | Fast, Production and Quality modes supported |
| Optional HS 4-colour configuration | High speed and high quality modes available |
